1280L 36 Months Warranty Salt Spray Corrosion Test Chamber
1280L 36 Months Warranty Salt Spray Corrosion Test Chamber
1280L 36 Months Warranty Salt Spray Corrosion Test Chamber
1280L 36 Months Warranty Salt Spray Corrosion Test Chamber
1280L 36 Months Warranty Salt Spray Corrosion Test Chamber
1280L 36 Months Warranty Salt Spray Corrosion Test Chamber
Specifications
Brand Name :
LIB
Model Number :
S-010
Certification :
CE,RoHS,ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
5-14 days
Packaging Details :
Wooden cases standard export package
Temperature :
Ambient ～60℃
Usage :
laboratory, university, research center
Warranty :
36 Months
Name :
Salt Fog Test Instruments
Standard :
ASTM B-117; ISO9227
Temperature range :
Ambient ～60℃
Description

▶Description
Salt spray test apparatus are used to test a product or material in a highly corrosive environment for the purposes of evaluating the long-term effects of salt on an object and its ability to withstand the effects of corrosion.
Environmental test chambers evaluate product quality and reliability and identify manufacturing flaws and weaknesses in those products before they are released to the general market.

▶Products Parameters

Name1280L 36 Months Warranty Salt Fog Test Instruments
ModelS-010
Internal dimensions 1000*1300*600(mm)
Interior Volume (L)780
Temperature rangeAmbient ～60℃
Humidity range95% ~ 98% RH
Temperature fluctuations+/- 0.5 ℃
Temperature deviation:+/- 2.0 ℃
Test time1~999 hours, settable
Spray deposition1～2ml / 80cm2 · h
Temperature ControllerLED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensorPT100Ω / MV A-class
Salt fog collectedFog collector and fog measure cylinder
Salt water preheatingSaturated air barrel
Spraying systemAtomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior materialGlass fiber reinforced plastics
Power Supply220V 50HZ

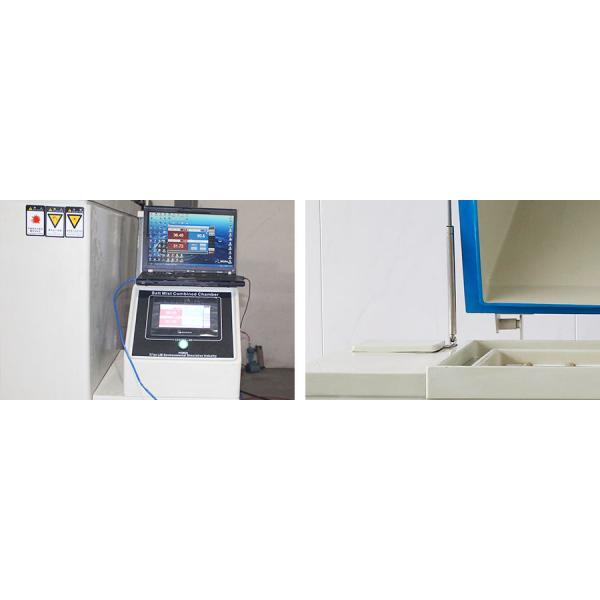

▶Details Advantage

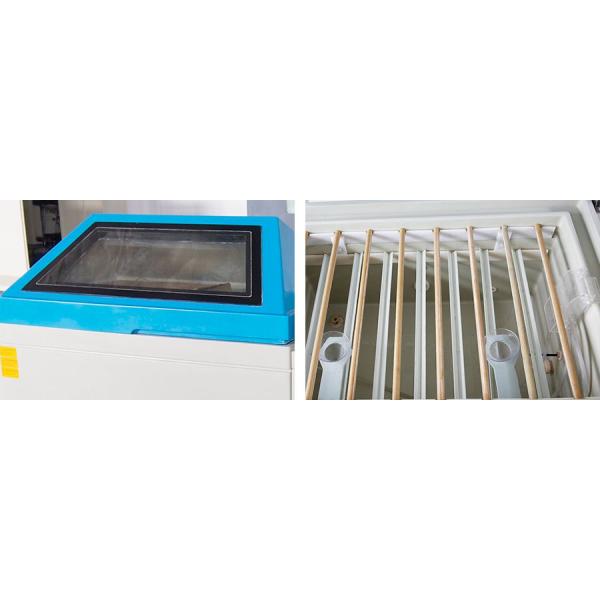

Observation Window
It is convenient to observe the sample clearly

Test Area
Flexible sample rack for large and small size samples

Control Panel
Programmable controller, multiple language options

Pneumatic Open/Close Lid
The equipment is equipped with air source diverting device


▶Sample Placement
1.If you need to test many pieces, make sure that every major surface can be detected by fog at the same time.
2.Permutation of samples, the spray should be free to drop on all the test pieces, preventing the situation of blocking the spray.
3.Each sample cannot be in contact with each other.
4.Salt spray can’t drop from one test piece to another one.
5.Sample identification mark should be marked on the bottom of the test piece.

▶Applications
Salt fog test apparatus includes B268, CNS 3627, 3885, 7669, 8886, JIS D-0201, H-8610, K-5400, Z-2371, ISO3768, 3769, 3770, and etc.

LIB INDUSTRY is salt spray chamber manufacturers, suppliers and supplies salt spray chamber in various kinds of size for choice. Here for more Envrionment Tester.

>>>Click here for more details!>>>
