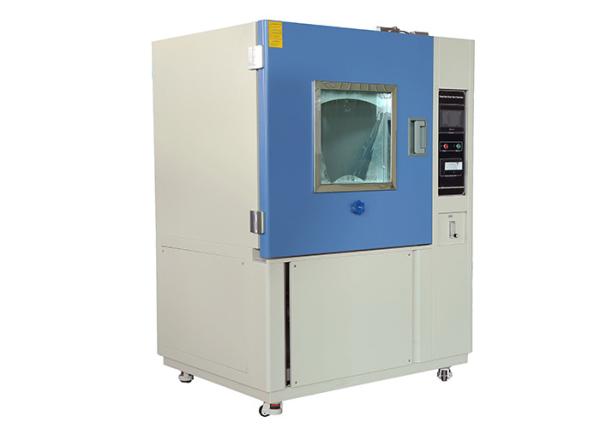

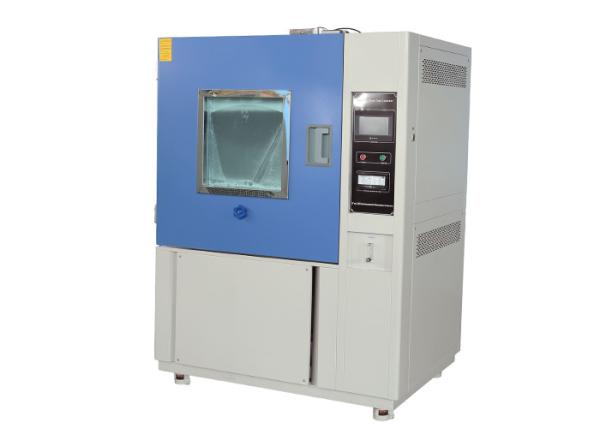

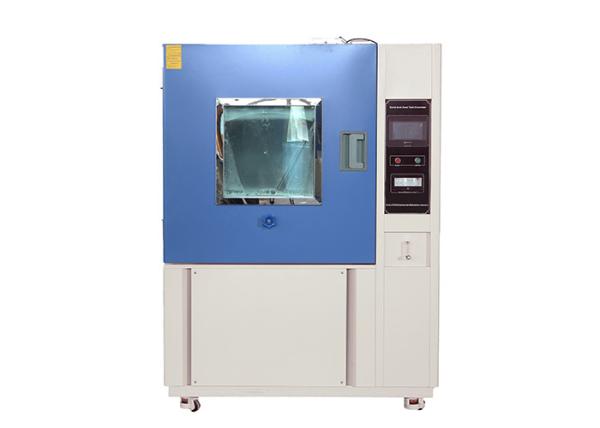

Dust Resistance Dust Proof Climatic Simulation Chamber For Electronic Products

Dust Proof Climatic Simulation Chamber simulating the destructive effect of natural sand,dust and wind climate on products, suitable for testing the shell sealing performance of products.

Dust Proof Climatic Simulation Chamber provide environments to test exposure of automotive and electronic components to concentrated levels of dust to validate seal integrity.

Dust Proof Climatic Simulation Chamber is applied to test the performance of electronic & electrical products, automotive, motorcycle parts, seal the pieces in the sand and dust environment using, storage, transportation, etc.

Interior of Chamber is SUS304 stainless steel.

Dust re-cycle blowing by circulating pump.

Dust collection section is located on bottom of test chamber.

A heater fixed into test chamber to keep dust dry.

A viewing window with a manually controlled wiper.

Programmable color display touch screen controller which located on right side of chamber

Test chamber internal illumination

Vacuum system for specime

Bottom install 4 castors for ease moving, and with brakes function

Safety protection

Standard: IEC60529

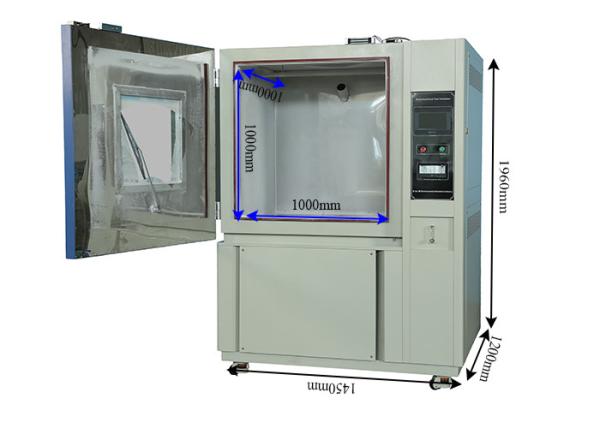

Test Area & Shelf

Interior of Chamber is SUS304 stainless steel.

A stainless steel shelf for placing test specimens

Standard load of shelf is 50kg

Normal wire diameter is 50 um.

Normal width of a gap between wires is 75um.

Built-in power interface for test specimen

Test chamber internal illumination

Vacuum system for specimen

Dust Circulation

During test, dust is blown in test area by motor and blower, and then fall in funnel, and re-cycle blowing by circulating pump to achieve dust circulation.

Bottom of chamber is fitted with blower, vacuum pump, motor.

Dust collection section is located on bottom of test chamber.

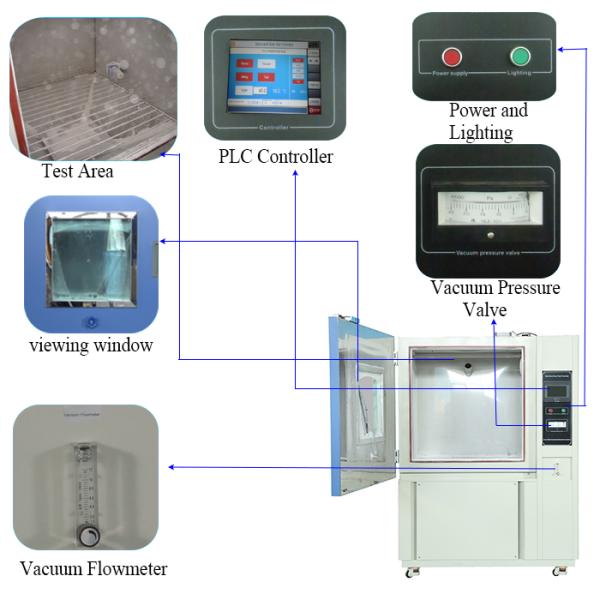

Vacuum System for Specimen

Bottom of dust chamber is fitted with vacuum pump, a pressure gauge, air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.

Adjust vacuum value on control panel.

Viewing Window

Large viewing window with wiper

Can observe samples during testing

Safety Protection

Earth leakage protection,

Short circuit

Over-temperature protection

Motor overheating protection

Over-current protection

Power failure memory function for controller

Our main products have passed the CE,RoHS,CAS,IEC60529 certification

3 Years Warranty, Lifelong Follow-up Services.

Training how to install and operate the machine.

Training how to maintain the machine.

Response within 24 hours once got questions from customers.

Send spare parts within 2 days after got notice.

Engineers available to service machines overseas to install and commissioning.

Xi'an LIB environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 8 years overseas market in test chambers to more than 25 countries.

Quality Guarantee
Customers from more than 32 countries purchased our climatic test chambers, we deeply realized that quality is the first and most. We control quality from the materials, electronic parts, controller, compressor, solenoid valve, pumps, lamps, accessories and many assembly parts of the products. After test chamber completed, we test its performance, inspect its functionality, go commissioning, work on calibration, and issue report for every steps, to guarantee the quality. We also pay more attention to delivery and shipment. We guarantee delivery on time, and have the obligation to advance delivery.

Third Party Inspection
All our test chambers accept third party inspection, such as SGS, UL, CSA, CE, RoHS…etc. Third party inspects on electrical system, material, accessories and whole machines, and delivery. We closely cooperate with third party to complete the inspection.
