IP6X Rate Dust Ingress Sand Dust Environmental Simulation Chamber Standard Custom

Dust Ingress Sand Dust Environmental Simulation Chamber is simulates the destructiveness of natural wind-sand climate to products, and is suitable for testing the sealing performance of the shell of products. It is mainly used for the tests of IP5X and IP6X specified in the shell protection grade standard.

Dust Ingress Sand Dust Environmental Simulation Chamber is applied in LED or other luminaries for IP5X and IP6X test.

Dust Ingress Sand Dust Environmental Simulation Chamber is mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile,lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed,suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.

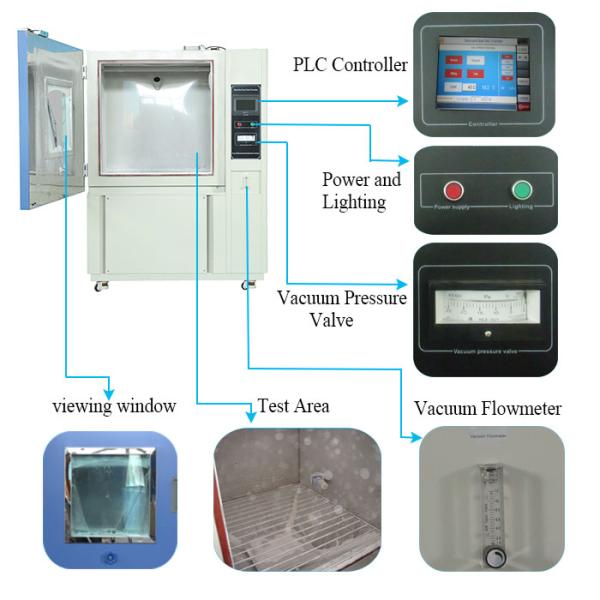

Interior of Chamber is SUS304 stainless steel.

Dust re-cycle blowing by circulating pump.

Dust collection section is located on bottom of test chamber.

A viewing window with a manually controlled wiper.

Programmable color display touch screen controller which located on right side of chamber

A stainless steel shelf for placing test specimens.

Vacuum system for specimen

Bottom install 4 castors for ease moving, and with brakes function

Safety protection

Standard: IEC60529

Test Area & Shelf

Interior of Chamber is SUS304 stainless steel.

A stainless steel shelf for placing test specimens

Standard load of shelf is 50kg

Normal wire diameter is 50 um.

Normal width of a gap between wires is 75um.

Built-in power interface for test specimen

Test chamber internal illumination

Vacuum system for specimen

Control Panel

Programmable color touch display controller

99 programs 99 sections

R-232 interface

PC Link with software

Show total process time on controller.

Dust Circulation

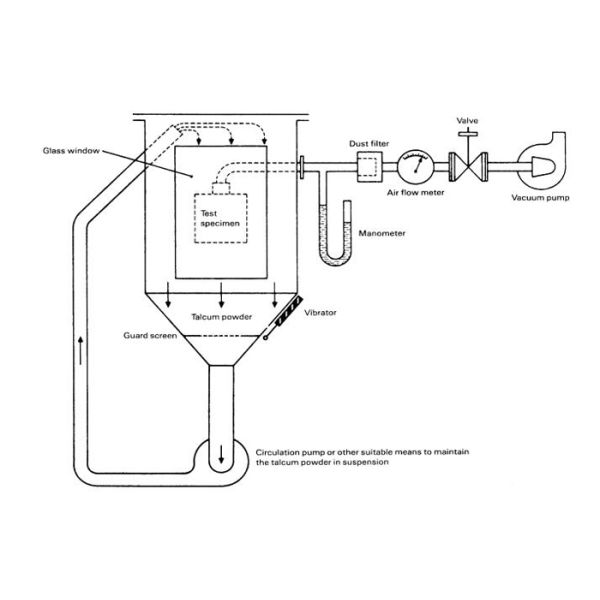

During test, dust is blown in test area by motor and blower, and then fall in funnel, and re-cycle blowing by circulating pump to achieve dust circulation.

Bottom of chamber is fitted with blower, vacuum pump, motor.

Dust collection section is located on bottom of test chamber.

Vacuum System for Specimen

Bottom of dust chamber is fitted with vacuum pump, a pressure gauge, air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.

Adjust vacuum value on control panel.

Viewing Window

Large viewing window with wiper

Can observe samples during testing

Safety Protection

Earth leakage protection,

Short circuit

Over-temperature protection

Motor overheating protection

Over-current protection

Power failure memory function for controller

Centrifugal fan is the main source of dust movement, the high-speed operation of the fan so that dust into the fan due to the centrifugal force of the role of fan blades into the dust pipe dust.The dust line was sprayed from above into the test chamber and passed through the sample,Sand and dust chamber As the lower part of the working box for the funnel, it can precipitate down the dust into the lower part of the 72 × 50um filter.

Use a polyethylene waterproof membrane,Export Standard Wooden Box

Overall dimension (mm):1040*1450*1960

Package size(mm):1620*1250*2070

Gross Weight:457KG

Can be used for Sea, Air, Railway, Truck transportation,TNT,Fedex,UPS,EMS.

3 Years Warranty, Lifelong Follow-up Services.

Training how to install and operate the machine.

Training how to maintain the machine.

Response within 24 hours once got questions from customers.

Send spare parts within 2 days after got notice.

Engineers available to service machines overseas to install and commissioning.
