Laboratory Dust Tightness Dust Resistance Climatic Test Chamber

Laboratory Dust Tightness Dust Resistance Climatic Test Chamber is made for the simulation of dust and sand conditions. These test chambers are used for evaluating the effects of dust-filled environments in order to validate product seal integrity. Dust test chambers are utilized in Automotive, Electro-technical products, Materiel, Coatings, Solar Energy, etc.

Sand and dust test specifications are designed to test components against dust ingress per IP rate.

Four models are available as standard types. Chamber size and configuration can be customized according to customer request.

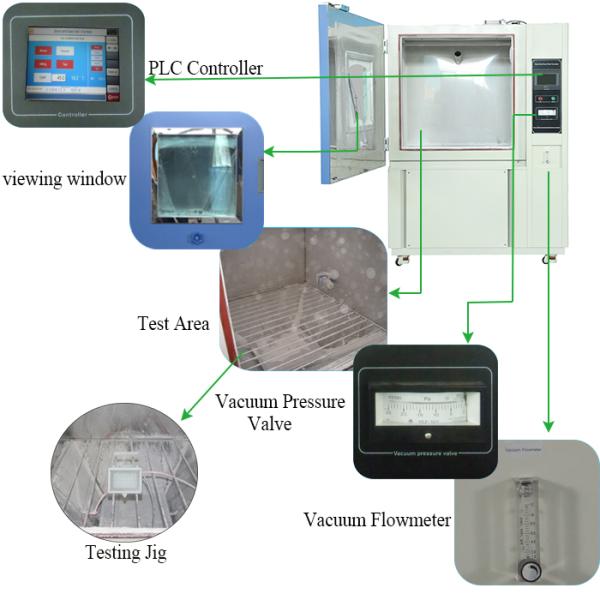

1. Blowing dust controlled by dust blowing mechanism
2. Programmable color display touch screen controller
3. Ethernet and USB
4. A viewing window with a manually controlled wiper
5. Strong stainless steel shelf for placing test specimens
6. Inside equipped with power interface and vacuum system for specimens
7. Internal illumination in workroom
8. Dust collection section
9. Safety protection
10. Easy to operate

IEC 60529

ISO 20653

MIL-STD-810F-510

MIL-STD-810G

Test Area & Shelf

Interior of Chamber is SUS304 stainless steel.

A stainless steel shelf for placing test specimens

Standard load of shelf is 50kg

Normal wire diameter is 50 um.

Normal width of a gap between wires is 75um.

Built-in power interface for test specimen

Test chamber internal illumination

Vacuum system for specimen

Control Panel

Programmable color touch display controller

99 programs 99 sections

R-232 interface

PC Link with software

Show total process time on controller.

Dust Circulation

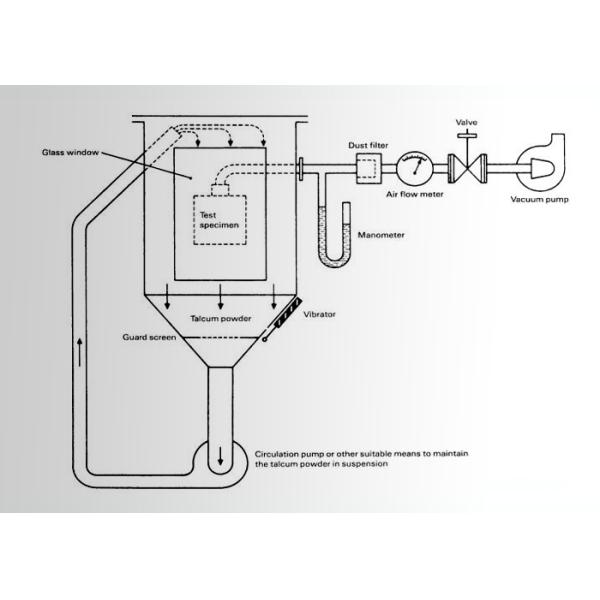

During test, dust is blown in test area by motor and blower, and then fall in funnel, and re-cycle blowing by circulating pump to achieve dust circulation.

Bottom of chamber is fitted with blower, vacuum pump, motor.

Dust collection section is located on bottom of test chamber.

Vacuum System for Specimen

Bottom of dust chamber is fitted with vacuum pump, a pressure gauge, air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.

Adjust vacuum value on control panel.

Viewing Window

Large viewing window with wiper

Can observe samples during testing

Safety Protection

Earth leakage protection,

Short circuit

Over-temperature protection

Motor overheating protection

Over-current protection

Power failure memory function for controller

​

• Export Standard Wooden Box
• Can be used for Sea, Air, Railway, Truck transportation
• Package size: 3.2m³, gross weight: 460kg

Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.

Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc

To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.

Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
