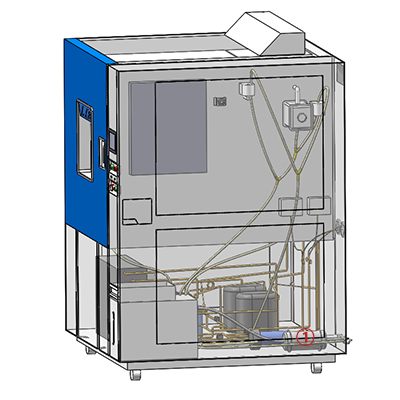

Environmental Temperature And Humidity Control Chamber 225L
Environmental Temperature And Humidity Control Chamber 225L
Environmental Temperature And Humidity Control Chamber 225L
Environmental Temperature And Humidity Control Chamber 225L
Environmental Temperature And Humidity Control Chamber 225L
Environmental Temperature And Humidity Control Chamber 225L
Environmental Temperature And Humidity Control Chamber 225L
Environmental Temperature And Humidity Control Chamber 225L
Specifications
Brand Name :
LIB
Model Number :
TH-225
Certification :
CE，RoHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram,
Supply Ability :
180 sets / quarter
Delivery Time :
3-14 days
Packaging Details :
Wooden Box standard export package
Name :
Temperature And Humidity Control Chamber
Low Type :
-20℃/-40℃/-60℃/-70℃/-86℃
Humidity Range :
10% - 98% RH
Temperature range :
-20℃ ～+150 ℃
Exterior material :
A3 Steel Plate
Controller :
PLC,PC Link, R-232 interface,USB,APP
Description

Environmental Temperature And Humidity Control Chamber

Description

Temperature and humidity control chamber offers the full range of comfort, reliability, and safety. It has active humidity control set from 20 % to 95 % rh and an unsurpassed homogeneity of temperature and humidity over the entire interior. It is suited for environmental testing, environmental simulation, accelerated service life tests, and 85/85 tests according to IEC 60068-2-67 and IEC 60068-2-78.

Easy to maintain, LIB humidity chambers are energy-efficient, corrosion-resistant and provide precise control. Stainless steel makes these chambers long-lasting, ensuring that your investment has an expansive lifespan.



Main Technical Parameter

Name

Temperature And Humidity Control Chamber

Model

TH-225

Internal Dimension (mm)

500*600*750

Overall Dimension (mm)

960*1150*1860

Temperature Range (℃)

A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V


Deatil

Water Recirculation System

LIB environmental test chamber equip water recirculation system provides a reliable source of demineralized water for the humidity system, using ordinary tap or pre-filtered water.

Condensate from the chamber is returned back to the water tank.

Perfect for installations where a water line and drain are not available.


Features

Climatic Test Chamber

◆RH control constancy of ±0.5%

◆Temperature control constancy of ±0.2°C

◆SUS304 stainless interior chamber

◆User-friendly and unit-specific digital controller

◆Extremely stable and uniform environment

◆Superior constancy and uniformity

◆Secure and safe

◆Longevity of equipment; corrosion resistant

◆Ease of operation
