High Low Temperature Cycling Chamber Calibrator Laboratory
High Low Temperature Cycling Chamber Calibrator Laboratory
High Low Temperature Cycling Chamber Calibrator Laboratory
High Low Temperature Cycling Chamber Calibrator Laboratory
High Low Temperature Cycling Chamber Calibrator Laboratory
High Low Temperature Cycling Chamber Calibrator Laboratory
High Low Temperature Cycling Chamber Calibrator Laboratory
High Low Temperature Cycling Chamber Calibrator Laboratory
Specifications
Brand Name :
LIB
Model Number :
TH-225
Certification :
CE，RoHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram,
Supply Ability :
180 sets / quarter
Delivery Time :
3-14 days
Packaging Details :
Wooden Box standard export package
Name :
High Low Temperature Cycling Chamber
Low Type :
-20℃/-40℃/-60℃/-70℃/-86℃
Humidity Range :
10% - 98% RH
Temperature range :
-20℃ ～+150 ℃
Exterior material :
A3 Steel Plate
Controller :
PLC,PC Link, R-232 interface,USB,APP
Description

High Low Temperature Cycling Chamber Calibrator Laboratory

Description

High Low Temperature Cycling Chamber is the first point to be considered when choosing a climatic chamber from MENTEK.Standard chambers can reach temperatures as high as 180°C and can cool to temperatures as low as -70°C. For higher or lower ranges than the normal,

High Low Temperature Cycling Chamber which also call environment test chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test, cooling-off test, heating-up test, moistening test and drying test... Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes,EN 14511.

Main Technical Parameter

Name

High Low Temperature Cycling Chamber Calibrator Laboratory

Model

TH-225

Internal Dimension (mm)

500*600*750

Overall Dimension (mm)

960*1150*1860

Temperature Range (℃)

A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V


Deatil

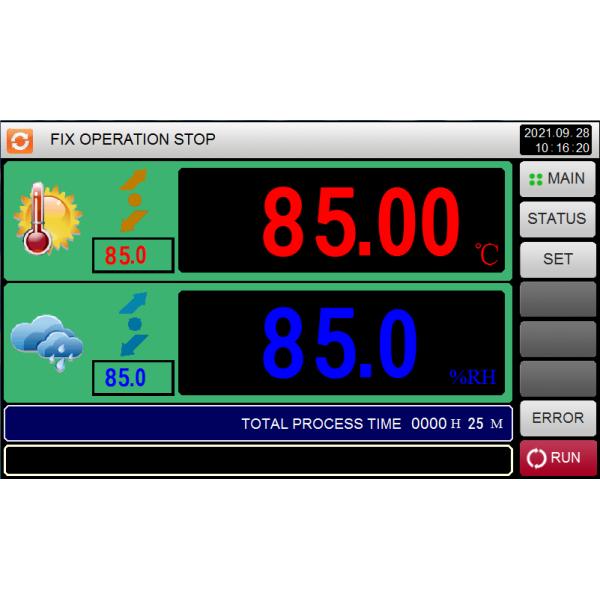

Test AreaProgrammable Controller



Important Characteristics

●Lowest temperature: -20 /-40/-70°C
●Highest temperature: 180°C
●Humidity range: 10 to 95% RH
●Time Display: 0-99999h
●Chamber size: 100l/225l/500l/1000l
●Touch-screen programmer with Ethernet access

Design Features

Temperature conditioning chamber conforms to ergonomics and safety design
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy mantain
