50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply
50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply
50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply
50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply
50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply
50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply
Specifications
Brand Name :
LIB
Model Number :
R-800C
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
410Sets
Delivery Time :
5-14 Days
Packaging Details :
Wooden Cases Standard Export Package
Spraying Hole Diameter :
φ0.4mm
Hole Spacing :
50 mm
Swing Angle of Oscillating Tube :
0 ~ ±180° (Adjustable）
Turntable Rotation Speed :
1r/min (Adjustable)
Water Pressure Control :
Flow meter
Standard :
IEC 60529, ISO20653
Description

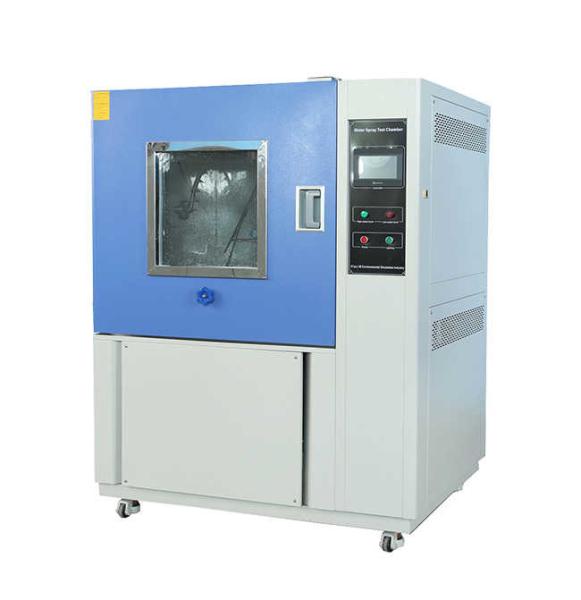

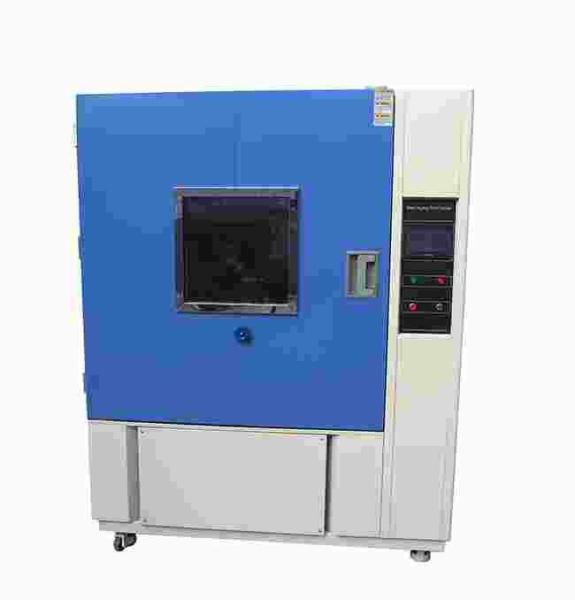

Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment

►Applicaton for Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment

Waterproof Ipx2 Rain Splash Water Test Chamber Water Spray Test Equipment simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic.

►Theory for Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment

Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipmentuses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.

► Chacteristics for Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment

1. Capacity of 729 liters and 2700 liters, standard and cu
2. Protection against drip, spraying and splashing water
3. Control and adjust water flow
4. Eliminates water consumption by circulation unit
5. Waterproof power connector in the test room
6. Automatic water supply
7. Programmable color display touch screen controller
8. USB and Ethernet
9. A viewing window with wiper
10. Internal illumination in test room
11. Safety protection system
12. CE mark

► Main Parameter for Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment

Name

IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment

Model

R-800C

R-1200C

Internal Dimensions (mm)

900*900*900

1400*1400*1400

Overall Dimensions (mm)

1120*1460*1660

1600*1950*2100

Interior Volume (L)

720

2740

Drip tray size (mm)

600*600

900*900

Spraying Hole Diameter

φ0.4mm

Hole Spacing

50 mm

Swing Angle of Oscillating Tube

0 ~ ±180° (Adjustable)

Turntable Rotation Speed

1r/min (Adjustable)

Oscillating Tube Radius

400mm

600mm

Water Pressure Control

Flow meter

Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link, USB

Build-in Water Tank(mm)

370*375*950

View Window Size(mm)

475*475

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Observation Window

Double layer insulating glass with wiper

Power Supply

380V 50Hz

Standard

IEC 60529, ISO20653

►Main Detailsfor Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment

50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply 50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply

1.Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof, high temperature and corrosion resistance;

Nice ruggedness and long life.

The workroom is equipped with a single-phase 16A internal power interface to power up the test specimen. The power-on time and cycle can be controlled by the controller.

2.Viewing Window

Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of water leakage.

Equipped with manual water wiper for easy observation samples
50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply 50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply

3.Water filtration system

4.Turntable

The turntable is made of 304 stainless steel, the speed and angle can be adjusted

Sample should be firmly fixed on the turntable.

50 Mm Hole Spacing Splash Water Test Chamber Ipx9k Test Equipment Automatic Water Supply
