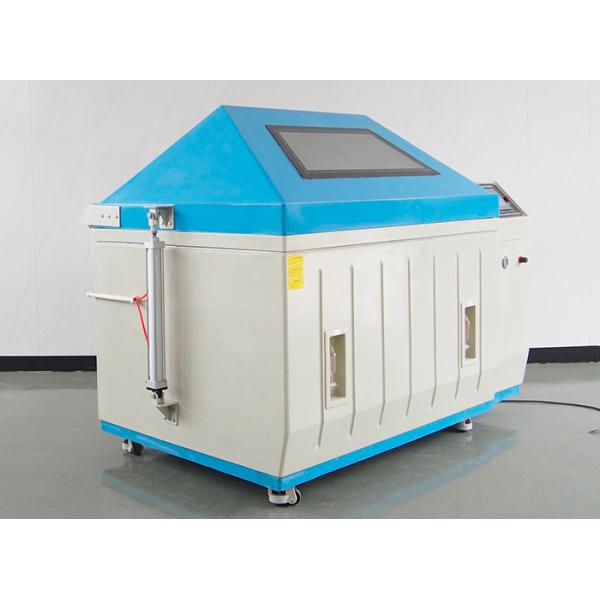

IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
Specifications
Brand Name :
LIB
Model Number :
S-010
Certification :
CE,RoHS,ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
5-14 days
Packaging Details :
Wooden cases standard export package
Application :
Battery
Temperature :
Ambient ～60℃
Warranty :
36 Months
Name :
Battery Salt Test Chamber
Standard :
IEC 60068-2-52
Humidity range :
95% ~ 98% RH
Description

▶Description

Battery salt test chamber,If the battery system is used at the seaside or in a salty fog environment, the cabinet will appear rust, which will affect

The structural strength of the battery casing further affects the normal function and safety of the battery.

▶Products Parameters

Name IEC 60068-2-52 35°C 93% Relative Humidity Battery Salt Test Chamber
Model S-010
Internal dimensions 1000*1300*600(mm)
Interior Volume (L) 780
Temperature range Ambient ～60℃
Humidity range 95% ~ 98% RH
Temperature fluctuations +/- 0.5 ℃
Temperature deviation: +/- 2.0 ℃
Test time 1~999 hours, settable
Spray deposition 1～2ml / 80cm2 · h
Spray type Continuous / Periodic
Temperature Controller LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor PT100Ω / MV A-class
Salt fog collected Fog collector and fog measure cylinder
salt water filtration Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating Saturated air barrel
Spraying system Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
Power Supply 220V 50HZ

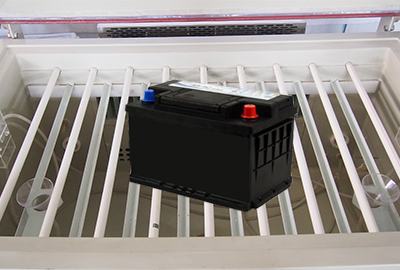

Battery Salt Spray Test

IEC 60068-2-52 35°C 93% Relative Humidity Battery Salt Test Chamber

IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery

Judgment requirements for battery salt spray test:

After the battery machine is subjected to the salt spray resistance test in the non-working state, the electrical connections should be free of oxidation and corrosion

Test Condition

IEC 60068-2-52 35°C 93% Relative Humidity Battery Salt Test Chamber

● Battry cycle salt water Test chamber:

● Salt spray fog

● Salt fog concentration: 5%

● Test temperature: 15~35℃

● Volume of spray: 1~2ml/h·80cm2

● PH: 6.5~7.2 (pH at 20±2℃)

● Temperature storage

● Relative humidity: 93% (RH)

● Test temperature: 40℃

● Residence time

● severity1:Each cycle performs 2 hours of salt water spray and 7 days of temperature storage, and a totally performed 4 cycles.

● severity2:Each cycle performs 2 hours of salt water spray and 20~22 hours, and a totally performed 3 cycles.

● Test tolerance

● Salt fog concentration: ±1%

● Test temperature: ±2℃

● Relative humidity: +2, -3%

IEC 60068-2-52 35C Salt Spray Corrosion Test Chamber 93% Relative Humidity Battery
