-40℃ Temperature Humidity Test Chamber Environmental Freezer
-40℃ Temperature Humidity Test Chamber Environmental Freezer
-40℃ Temperature Humidity Test Chamber Environmental Freezer
-40℃ Temperature Humidity Test Chamber Environmental Freezer
-40℃ Temperature Humidity Test Chamber Environmental Freezer
-40℃ Temperature Humidity Test Chamber Environmental Freezer
-40℃ Temperature Humidity Test Chamber Environmental Freezer
-40℃ Temperature Humidity Test Chamber Environmental Freezer
Specifications
Brand Name :
LIB INDUSTRY
Model Number :
T-100
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
210 Sets/Quarter
Delivery Time :
5-14 Days
Packaging Details :
Wooden Cases Standard Export Package
Product name :
Temperature Humidity Test Environmental Freezer
Temperature range :
-40 degree ~ +150 degree
Refrigerant :
R404A, R23(environmental)
Cooling Rate :
1 ℃ / min
Heating Rate :
3 ℃ / min
Usage :
Laboratories, factories, university, research institutions
Description

T-100 -40℃ Temperature Humidity Test Environmental Freezer

Description

LIB INDUSTRY Temperature Humidity Test Environmental Freezer evaluate your products and systems to extreme environmental conditions in our Environmental Simulation Laboratory helping you bring your product from development to end use faster and more cost-effectively. Testing simulates the normal and extreme environmental exposure that your product may face to verify the performance and safety in any environmental condition.

Main Parameter

Name

T-100 -40℃ Temperature Humidity Test Environmental Freezer

Model

T-100

T-225

Internal Dimension (mm)

400*500*500

500*600*750

Overall Dimension (mm)

860*1050*1620

960*1150*2010

Interior Volume

100L

225L

Heat load

1000W

Temperature Range

A : -20℃ ～ +150 ℃

B : -40℃ ～ +150 ℃

C: -70℃ ～ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Refrigerant

R404A, R23

Heating Element

Nichrome heater

Controller

Programmable color LCD touch screen controller

Ethernet connection, PC Link

Main Details

-40℃ Temperature Humidity Test Chamber Environmental Freezer

-40℃ Temperature Humidity Test Chamber Environmental Freezer

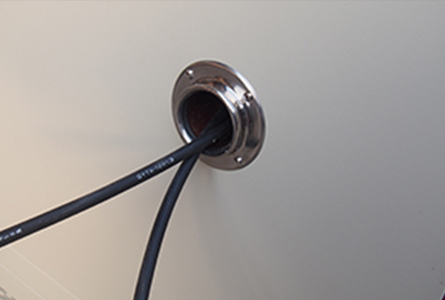

Cable Hole

Temperature Humidity Test Environmental Freezer can make the sample power line through, to provide power for the sample

Test Area

The sample rack can be adjusted to meet the test requirements of samples of different size

LIB Environmental Test Chamber

Temperature Humidity Test Environmental Freezernot only provides you with the device, but also provides you with the solution

-40℃ Temperature Humidity Test Chamber Environmental Freezer

Testing Capabilities

  • Ultra low temperature freezer
  • Military Testing
  • Battery Testing
  • Package Testing
  • Cable Testing
  • Aeronautics Testing
  • Building Materials Testing

With the accreditations to certify products for international markets, LIB INDUSTRY is a leader in environmental simulation testing. LIB INDUSTRY is trusted around the world for quality assurance and helps your product build consumer trust in global marketplaces.
