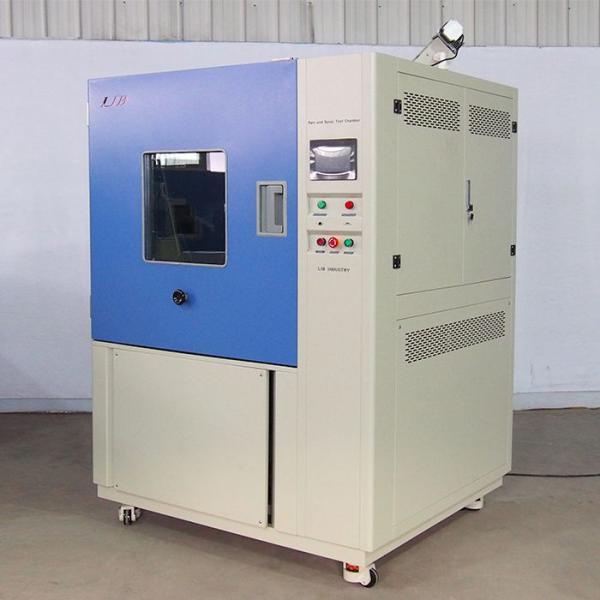

0.30MPA 1000L JIS D 0203 1.9L/Min Rain Test Equipment
0.30MPA 1000L JIS D 0203 1.9L/Min Rain Test Equipment
0.30MPA 1000L JIS D 0203 1.9L/Min Rain Test Equipment
0.30MPA 1000L JIS D 0203 1.9L/Min Rain Test Equipment
0.30MPA 1000L JIS D 0203 1.9L/Min Rain Test Equipment
0.30MPA 1000L JIS D 0203 1.9L/Min Rain Test Equipment
Specifications
Brand Name :
LIB
Model Number :
R-1000JIS
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
120 Set/Quarter
Delivery Time :
5-14 Days
Packaging Details :
Wooden Cases Standard Export Package
Standard :
JIS D 0203
Internal Dimensions (mm) :
1000*1000*1000 D*W*H
Specimen to Nozzle :
Approx.400mm
R1 Water Flow Rate :
1.9L/min.
R2 Water Flow Rate :
3.3L/min.
S1 Water Flow Rate :
24.5L/min
S2 Water Flow Rate :
39.2L/min
Description

JIS D 0203 Rain And Spray Test Chamber

► Description for JIS D 0203 Rain And Spray Test Chamber

JIS D 0203 rain and spray test chamber is formulated in accordance with JIS D 0203 standard to test the waterproof performance of the automobile parts, equipped with automatic water inlet and water circulation device, effectively saving money.


JIS D 0203 rain and spray test chamber are prepared according to different test requirements. The multi-function controller is easy to operate, one-key controls the test requirements parameters, and can be connected to the PC terminal remotely to facilitate the download and use of test data. JIS D 0203 Rain Spray Chamber is mainly applied to automobile parts test.

► Features for JIS D 0203 Rain And Spray Test Chamber

1. Standards and customizations
2. Control and adjust water flow
3. Eliminates water consumption by circulation unit
4. Waterproof power connector in the test room
5. Automatic water supply
6. Programmable color display touch screen controller
7. USB and Ethernet
8. A viewing window with wiper
9. Internal illumination in test room
10. Safety protection system
11. CE mark

► Main Parameter for JIS D 0203 Rain And Spray Test Chamber

Name

JIS D 0203 Rain And Spray Test Chamber

Model

R-1000JIS

Internal Dimensions (mm)

1000*1000*1000 D*W*H

Overall Dimensions (mm)

1100*1460*1900 D*W*H

Interior Volume (L)

1000

Distance from Specimen to Nozzle

Approx.400mm

Rain Nozzle

2 holes

Rain Nozzle Hole

Φ0.5mm

R1 Water Flow Rate

1.9L/min.

R2 Water Flow Rate

3.3L/min.

Spray Nozzle

40 holes

Spray Nozzle Hole

Φ1.2mm

S1 Water Flow Rate

24.5L/min

S2 Water Flow Rate

39.2L/min

Water Pressure at Nozzle

0.03 ~ 0.30MPA

Turntable Rotation Speed

17r/min

Water Pressure Control

Flow meter

Controller

Programmable color LCD touch screen controller

Ethernet connection, PC Link, USB

Build-in Water Tank(mm)

370*375*950

View Window Size(mm)

475*475

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Safety Device

Over-temperature Protection; Over-current Protection;

Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

► Main Details for JIS D 0203 Rain And Spray Test Chamber

0.30MPA 1000L JIS D 0203 1.9L/Min Rain Test Equipment

1. Workroom

The internal material is 304 stainless steel.
40 spray nozzles and 2 rain nozzles for water resistance test

2. Controller
one-button start, programmable controller, multiple language options
0.30MPA 1000L JIS D 0203 1.9L/Min Rain Test Equipment

3. Servo Motor
Servo motor can control speed and position accuracy is very accurate

4. Turntable
Flow pipe is made of stainless steel. Flow pipe shall be rotated around the axis X-S at the rate of approximately 23r/min.

Packages

◆Rain waterproof test chamber use export standard wooden box
◆Can be used for Sea, Air, Railway, Truck transportation
◆Package size: 3.4m³, gross weight: 410kgs
