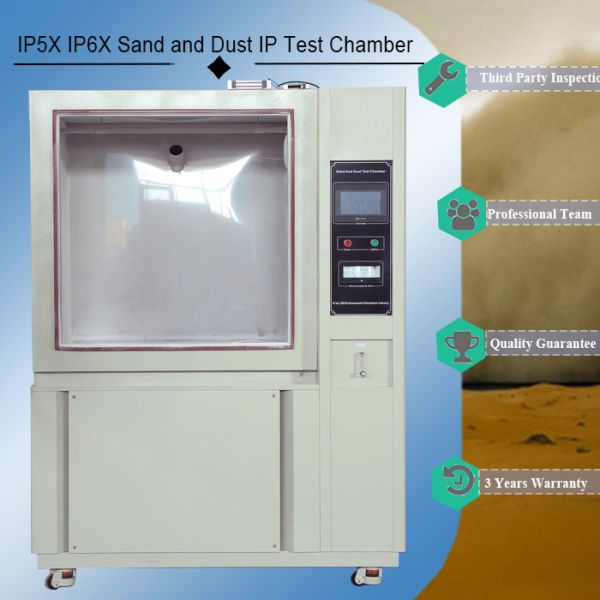

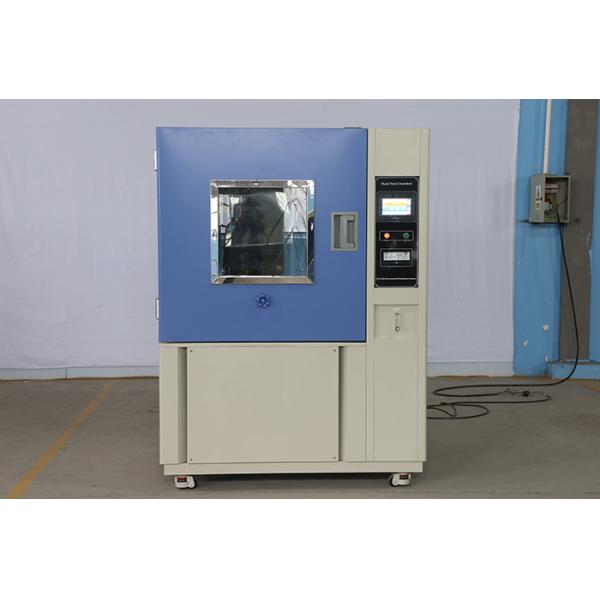

Laboratory 380V 50HZ Sand And Dust Test Chamber 1500 Liters / 2000 Liters
Laboratory 380V 50HZ Sand And Dust Test Chamber 1500 Liters / 2000 Liters
Laboratory 380V 50HZ Sand And Dust Test Chamber 1500 Liters / 2000 Liters
Laboratory 380V 50HZ Sand And Dust Test Chamber 1500 Liters / 2000 Liters
Specifications
Brand Name :
LIB
Model Number :
DI-1000
Certification :
IEC60529,RoHS,CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD2290 ~ USD1100 / SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
3-14days
Packaging Details :
Wooden cases standard export package
Overall dimensions (mm) :
1200*1450*1960
Temperature range :
Ambient to +50℃
Normal wire diameter :
50um
Normal width of a gap between wire :
75um
Standard :
IEC60529,ISO20653
The Talcum powder amoun :
2kg ~ 4kg/m3
Description

Sand Dust Ingress Protection Test Equipment for Quality Assurance Laboratory

Description of Sand Dust Test Equipment

Sand Dust Ingress Protection Test Equipment for Quality Assurance Laboratory, test chamber that simulates the climate and environment with sand and dust to carry out dust proof test and sand blowing test on samples.This product is suitable for all kinds of automobile parts to do dust and dust test, test parts include lights, meters, electrical dust cover, steering system, door locks, etc.

Main Technical Parameter of Sand Dust Test Equipment
Model DI-1000
Internal dimensions (mm)8 1000*1000*1000
Overall dimensions (mm)

1200*1450*1960
Temperature range Ambient to +50℃
Relative Humidity <30%RH
Normal wire diameter 50um
Normal width of a gap between wire 75um
The Talcum powder amount 2kg ~ 4kg/m3
Fight time 0 ~ 99H59M
Fan cycle time 0 ~ 99H59M
Specimen power outlet Dust-proof socket AC220V 16A
Controller programmable color display touch screen controller
PC Link, R-232 interface
Vacuum system Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Circulating fan Enclosed alloy low-noise motor, multi-vane centrifugal fan
Heating system Independent Nichrome electronic heating system
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Safety System Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller
Power supply 380V 50HZ

​Standards of Sand Dust Test Equipment

IEC 60529

ISO 20653

MIL-STD-810F-510

MIL-STD-810G

Key Features of Sand Dust Test Equipment

Larger capacity of 1500 liters and 2000 liters.

Standard and custom.

Suitable for large and more quantity products

Dust blowing through special wind tunnel and air outlet

Constant dust concentration

2 viewing windows with wipers

2 doors with tight seal

Programmable color LCD touch screen controller

USB and Ethernet

Strong stainless steel specimen shelves

Build -in power interface and vacuum system for specimens

Internal illumination in test room

Reliable performance

Safety protection system

CE mark, ISO17025 calibration

Easy to operate

Dust collection section is located on bottom of test chamber.

A heater fixed into test chamber to keep dust dry.A viewing window with a manually controlled wiper.

The air velocity for the blowing of dust is controlled by a dust blowing mechanism that includes a motor and blower combination

Laboratory 380V 50HZ Sand And Dust Test Chamber 1500 Liters / 2000 Liters

Structure characteristics
  • Equipment structure takes up stainless steel plate plus (41090) power for hull painting. It not only has good profile, but also has fine corrosion resistance.
  • It has advanced and innovative control theory, it integrates three control systems of PLC, HMI and SOC in fine way. Control is correct by 100%, and you can experience the novel control feeling;
  • It utilizes most powerful and reliable PLC and special modules in the industry circle. 50 programs and 2500 steps are provided for user to make setting/storage and running;
  • It utilizes protection module for safe voltage, the withstand voltage can reach 500V. After energizing the equipment, the equipment will not be burned and it can protect the equipment by 100%.
  • It has automatic safety protection switch, which has high sensitivity, can detect any state, cut off protection and give alarm in shortest time and assure safety of the personnel and equipment;
  • It has air supply and circulating system, which can avoid dead angle of air flow in the chamber and improve the uniformity degree of product temperature and humidity.

LIB Service

Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.

How to Service?

  • At first, our test chambers are produced based on 20 years product lifetime. Normally once test chambers have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts on by email or video. Within 3 years, all spare parts and shipping cost (by DHL, TNT, and FedEx) paid by our company LIB.
  • If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
  • If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
  • You can contact our local service center in overseas market to get service and product.
