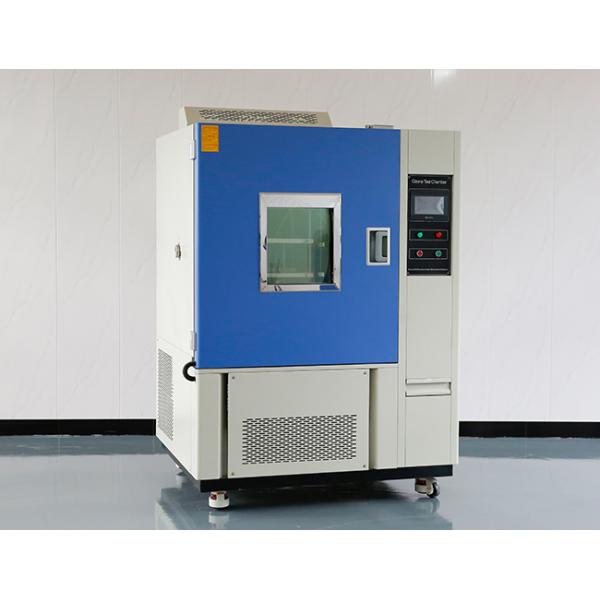

Electronic 500 pphm Rubber Ozone Chamber,Rubber Testing Instruments

√ ASTM D 1149
√ IEC60811-403
√ ISO 1431
√ JIS K6259
√ ASTM D1171

* Stainless steel inside and outside for Ozone test chambers
* Outside made iron with galvanized coating.
* Durable ozone generator (Ozone Test Chambers)
* Bottom is universal round wheel and fixed foot
* Window materials is multilayer steel-glass, the inside is chip conductive

Electronic 500 pphm Rubber ozone chamber,Rubber Testing Instruments can be used to test rubber products with static tensile deformation, such as vulcanized rubber, thermoplastic rubber, cable insulating bush; Expose the test specimens to the sealed air in the ozone chamber without light and with constant ozone concentration and constant temperature according to predetermined time, and then observe the cracks on test specimens’ surface and the degree of change of other properties to evaluate the rubber’s ozone aging resistance properties.

1. Test area and sampler holder

Ozone test chamber is for testing of elastomers.

Test area is made of stainless-steel.

Equipped with dynamic sample holder.

Static + dynamic combined sample holder, can stretch samples, sample holder can 360° rotated, meet different test standards

2. Control Operation

Programmable color display touch screen controller

Program: 100 groups in 999 sections; RS-232 interface

PC Link with software.

Control Temperature, humidity and Ozone concentration on controller.

Turning the round button to control holder rotate speed and clamps tensile stretch.

3. Viewing Window
Double layer insulating glass 8cm thick, made of tempered glass.
The conductive film is located on the interior glass to prevent window frosting,
built-in LED light for the work room lighting ;can clearly observe samples.The light control button is located below the controller

4. Ozone Sensor
Ozone gas concentration detection transmitter
High accuracy, easy to exchange

▶ 3 Years Warranty, Lifelong Follow-up Services.

▶ we will supply solutions to you with 24 hours.

▶ On site service

▶ Video training service

1. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
2. Payment terms: L/C. Western Union. Paypal. T/T.
3. Sample lead time: 3-8 days.
4. Mass production time: 10-15 days depending on the order qty.
5. Delivery method time: By air, by sea or combined transportation.
6. Door to door service with Express: Fedex, DHL, UPS, EMS.

We provide 1 stop solutions, provide standard and custom service.
