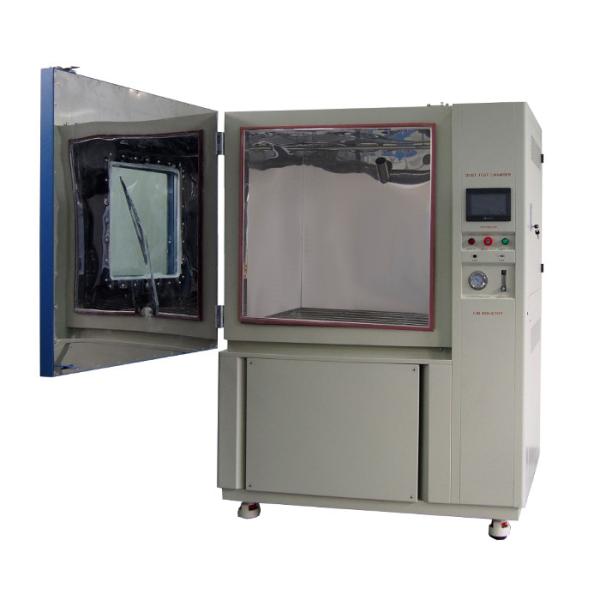

Fan Driven IP Dust Ingress Chamber ISO 20653 50℃
Fan Driven IP Dust Ingress Chamber ISO 20653 50℃
Fan Driven IP Dust Ingress Chamber ISO 20653 50℃
Fan Driven IP Dust Ingress Chamber ISO 20653 50℃
Fan Driven IP Dust Ingress Chamber ISO 20653 50℃
Fan Driven IP Dust Ingress Chamber ISO 20653 50℃
Fan Driven IP Dust Ingress Chamber ISO 20653 50℃
Fan Driven IP Dust Ingress Chamber ISO 20653 50℃
Specifications
Brand Name :
LIB
Model Number :
DI-800
Certification :
IEC60529,CAS,Rohs,CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
3-14days
Packaging Details :
Wooden cases standard export package
Name :
ISO 20653 50℃ Dust Ingress Chamber
Overall dimensions (mm) :
800*1000*1000
Temperature range :
Ambient to +50℃
Normal wire diameter :
50um
Normal width of a gap between wire :
75um
Standard :
IEC60529,ISO20653
Description

ISO 20653 50℃ Dust Ingress Chamber

Description

The IP Dust Ingress Chamber is driven by a fan to drive a certain concentration of sand dust through the surface of the test sample at a certain flow rate, so as to evaluate the ability of these test samples (equipment) to resist the penetration effect of dust particles under the action of dry sand or dust-filled atmosphere, the ability to defend against the abrasive or blocking effect of grit, and the ability to store and operate.

Main Technical Parameter

Name ISO 20653 50℃ Dust Ingress Chamber
Model DI-800
Internal dimensions (mm)8 800*1000*1000
Overall dimensions (mm)

1040*1450*1960
Temperature range Ambient to +50℃
Relative Humidity <30%RH
Normal wire diameter 50um
Normal width of a gap between wire 75um
The Talcum powder amount 2kg ~ 4kg/m3
Fight time 0 ~ 99H59M
Fan cycle time 0 ~ 99H59M
Specimen power outlet Dust-proof socket AC220V 16A
Controller programmable color display touch screen controller
PC Link, R-232 interface
Vacuum system Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Circulating fan Enclosed alloy low-noise motor, multi-vane centrifugal fan
Heating system Independent Nichrome electronic heating system
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Safety System Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller
Power supply 380V 50HZ

Details

Fan Driven IP Dust Ingress Chamber ISO 20653 50℃ Fan Driven IP Dust Ingress Chamber ISO 20653 50℃

Test Area

pressure gage
Fan Driven IP Dust Ingress Chamber ISO 20653 50℃ Fan Driven IP Dust Ingress Chamber ISO 20653 50℃

Dust cycle

LAN and USB

Fan Driven IP Dust Ingress Chamber ISO 20653 50℃ Fan Driven IP Dust Ingress Chamber ISO 20653 50℃

IP5X Dustproof Rating

Meaning: IP5X Dustproof Test ,Dust cannot be completely prevented from entering, but the amount of dust entering must not affect the normal operation of the equipment and do not affect safety.

Protection test: Test wires with a diameter of 1.0 mm cannot enter the housing and cannot maintain sufficient clearance with live parts.

Features

1. Visual glass door, easy to observe the condition of the test sample in the dust test chamber;

2. The bottom of the test chamber adopts high-quality fixed PU movable wheel;

3. There is a dust replacement device at the bottom of the sand test chamber;

4. Blowing dust and stopping blowing time are automatically alternated;

5. Vacuum pressure indication and adjustable;
