400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation
400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation
400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation
400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation
400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation
400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation
400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation
400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation
Specifications
Brand Name :
LIB
Model Number :
Walk-Ins
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
10 Sets/quarter
Delivery Time :
5-16 Days
Packaging Details :
Wooden Cases Standard Export Package
Name :
-20℃ 95% RH
Temperature range :
-70℃ ~ +150℃
Humidity range :
10% ~ 95% RH
Power Supply :
400V 50HZ
Size :
custom-made
Description

Description

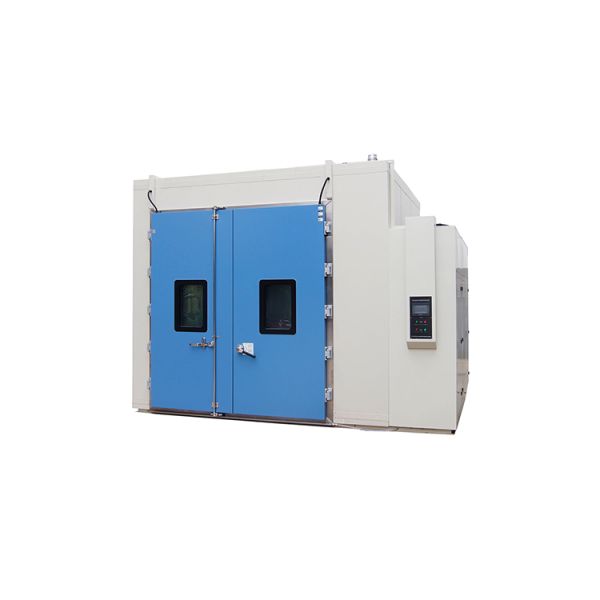

The walk in climatic test chamber is an instrument used to test the product environmental physics and other related characteristics under low temperature and simulated conditions according to standard requirements or user-defined requirements.

Size

●Standard walk-in test chamber

●Custom Size Walk-In Test Chamber

Technical Specification

Name

Walk In Climatic Test Chamber Walk In Temperature Chamber

Model

Walk-Ins

Internal dimension (mm)

Custom Made

Overall dimension (mm)

Custom Made

Temperature range

-70℃ ~ +150℃

Humidity range

10% ~ 95% RH

Temperature fluctuations

± 2.0℃

Humidity fluctuations

± 5.0% RH

Heating rate

1℃ / min

Cooling rate

1 ℃ / min

Controller

Programmable color LCD touch screen controller

PC Link, Ethernet port

Cooling system

Mechanical compression refrigeration system

Thermal insulation

Polyurethane foam

Noise

Less than 85 dBA

Power Supply

400V 50HZ

Environmental conditional

5℃～+40 ℃ ≤85% RH

Details of the Advantage

400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation 400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation

Test Area

 Programmable Controller

Features

●Remote monitoring

Remote monitoring/control (Ethernet connection) can be performed, and data download can be performed by setting the test condition program mode;

●High performance

Climatic test chamber,-40℃~+150C, humidity 10%~98%R.H, to achieve double 85 conditions, the maximum temperature change rate is 3℃/min;

●Integrated customization

3m³ ~ 36m³ walk-in chamber structure is integrated and customized to meet the large-scale material and product tests in different industries.

400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation 400V Climatic Test Walk In Environmental Chamber Polyurethane Foam Thermal Insulation

For more custom test chamber, please contact us
