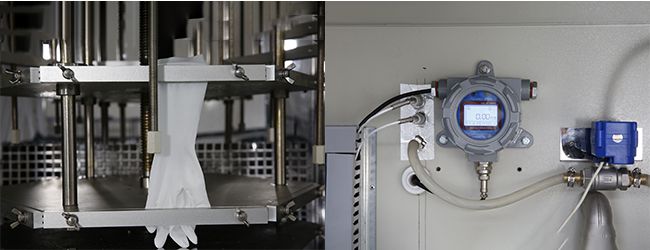

ASTM 1149 Climatic Ozone Test Chamber Silent Discharge Typ For Rubber
ASTM 1149 Climatic Ozone Test Chamber Silent Discharge Typ For Rubber
ASTM 1149 Climatic Ozone Test Chamber Silent Discharge Typ For Rubber
ASTM 1149 Climatic Ozone Test Chamber Silent Discharge Typ For Rubber
ASTM 1149 Climatic Ozone Test Chamber Silent Discharge Typ For Rubber
ASTM 1149 Climatic Ozone Test Chamber Silent Discharge Typ For Rubber
ASTM 1149 Climatic Ozone Test Chamber Silent Discharge Typ For Rubber
ASTM 1149 Climatic Ozone Test Chamber Silent Discharge Typ For Rubber
Specifications
Brand Name :
LIB
Model Number :
OC-250
Certification :
CE,ROHS,ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Paypal
Supply Ability :
180 Sets/ Quarter
Delivery Time :
3-10 days
Packaging Details :
Wooden cases standard export package
Ozone Concentration :
1～1000PPHM
Clamps Tensile Stretch :
5%～35%
Gas Sensor :
Ozone gas sensor
Ozone Generator :
Silent discharge type ozone generator
Standard :
ISO1431;ASTM 1149；IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171
Sample Holder :
Static + dynamic combined sample holder
Description

Description

Ozone levels in the atmosphere is the main factors of rubber cracking, ASTM 1149 Ozone Climatic Teser For Rubber for rubber simulation and strengthen the ozone in the atmosphere conditions, studied the effect of ozone on rubber, rubber resistance to ozone aging fast identification and evaluation of performance and the antiozonant shielding efficiency of the method, and then take effective measures, the anti aging in order to improve the service life of rubber products.

Technical Specification

Name

ASTM 1149 Ozone Climatic Teser For Rubber

Model

OC-250

OC-500

OC-800

OC-010

Internal Dimension (mm)

600*600*600

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

960*1150*1860

1180*1350*2010

1280*1550*2110

1500*1550*2110

Interior Volume (L)

250

500

800

1000

Temperature Range

0℃ ～ +100 ℃

Humidity Range

30% ~ 98% RH

Cooling Rate

Ambient ~ 0℃ within 20 min

Ozone Concentration

1～1000PPHM

Sample Holder Rotate Speed

0~10 r/min

Airflow Rate

0 ~ 60L/min

Clamps Tensile Stretch

5%～35%

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Refrigerant

R404A, R23

Heating Element

Nichrome heater

Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃

Humidity Sensor

Dry and wet bulb sensor

Gas Sensor

Ozone gas sensor

Ozone Generator

Silent discharge type ozone generator

Air Circulation

Centrifugal wind fan

Door Lock

Electromagnetic lock

Sample Holder

Static + dynamic combined sample holder

Safety Device

Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection;

Refrigerant High-pressure Protection; Water Shortage Protection; Earth Leakage Protection

Thermal Insulation

Polyurethane foam and insulation cotton

Observation Window

Interior lighting, double-layer thermostability silicone rubber sealing

Power Supply

380V 50Hz

Standard

ISO1431;ASTM 1149；IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171

Maximum Noise

65 dBA

Environmental Conditional

5℃～+35 ℃ ≤85% RH

Main technical parameters

1. Stainless steel inside and outside

2. Outside made iron with powder coating

3. ozone environmental chamber adopt durable ozone generator

4. Insulation material is High-density glass fiber cotton

5. Bottom is universal round wheel and fixed foot

6. Window materials is multilayer steel-glass, the inside is chip conductive

Applicable Industries

Ozone environmental teser for rubber is widely used to control products quality in measuring quality control; Rubber & Plastics; Automobile production; Wire and cable; Packing materials; Instruments and meters; Medical equipment; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratories; Inspection arbitration, and technical supervision departments and other rubber products.
