ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
Specifications
Brand Name :
LIB
Model Number :
XL-750
Certification :
CE,RoHS,ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，paypal
Supply Ability :
120 sets / quarter
Delivery Time :
14 days ( check if have stock)
Packaging Details :
Wooden cases standard export package
Name :
Accelerated Aging Chamber
Temperature Range :
Ambient ~100℃±2°C
BPT Temperature :
BPT +35 to +120 ℃
Bandwidth Measurement :
280nm~800nm
Certificate :
CE,RoHS,ISO17025
Specimen Capacity :
42pcs
Description

ASTM G155 Weathering Accelerated Aging Chamber

Description

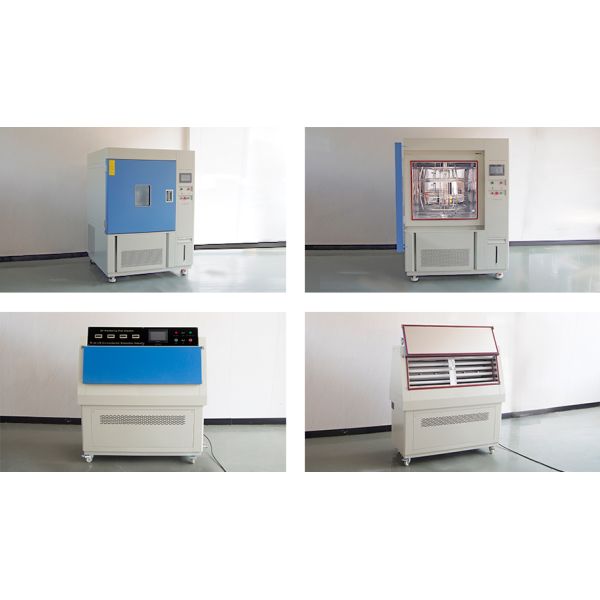

The LIB INDUSTRY accelerated aging chamber is mainly divided into 2 types, one is the UV accelerated aging chamber, which mainly uses ultraviolet light for aging test. The other is the xenon accelerated aging chamber, which mainly simulates the sunlight in the natural environment and conducts the aging test on the product.

You just need to tell us your needs, we recommend a suitable accelerated aging chamber for you.

Specification

Name

ASTM G155 Weathering Accelerated Aging Chamber

Model

XL-750

Internal dimensions D*W*H

950*950*850 mm

Overall dimensions D*W*H

1300*1420*1800 mm

Specimen Capacity

42pcs

Specimen holder size

95*200mm

Irradiation Source

1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter

Irradiance Range

100~1200 W/㎡

Bandwidth Measurement

280nm~800nm

Chamber Temperature Range

Ambient ~100℃±2°C

Black Panel Temperature

BPT 35 ~85℃±2°C

Relative Humidity Range

50~98% R.H±5% RH

Water Spray cycle

1～9999H59M, adjustable

Controller

programmable color display touch screen controller, PC Link, R-232 interface

Radiometer

Tolerance: ±5%

Heating system

Nichrome heater

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Humidification system

External isolation, stainless steel surface evaporation humidifier

Air circulation

Centrifugal wind fan

Water supply system

Automatic water supply; Water purification system

Safety device

Humidifier dry-combustion protection; over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Water shortage protection,

Earth leakage protection;

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Thermal insulation

Polyurethane foam

Observation window

Interior lighting , double-layer thermo stability silicone rubber sealing

Power Supply

AC380V 50HZ

Accelerated Aging Chamber

ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber

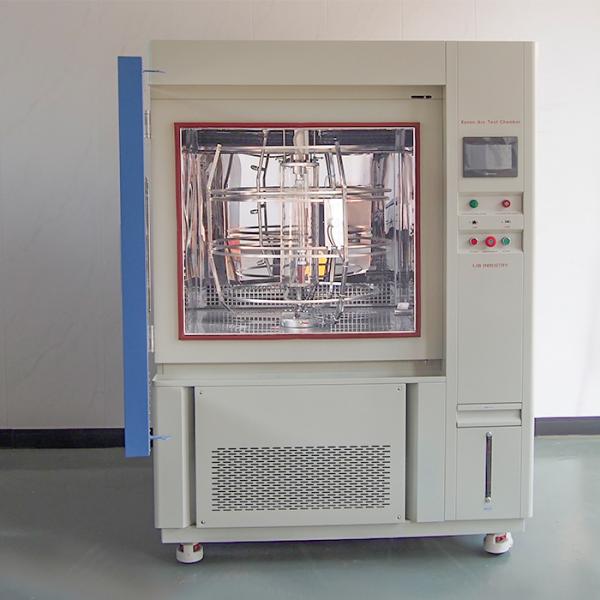

xenon accelerated aging chamber
Irradiance Range:100~1200 W/㎡
Bandwidth Measurement:280nm~800nm
Chamber Temperature Range:Ambient ~100℃±2°C
Black Panel Temperature:BPT 35 ~120℃±2°C
Relative Humidity Range:50~98% R.H±5% RH
ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber

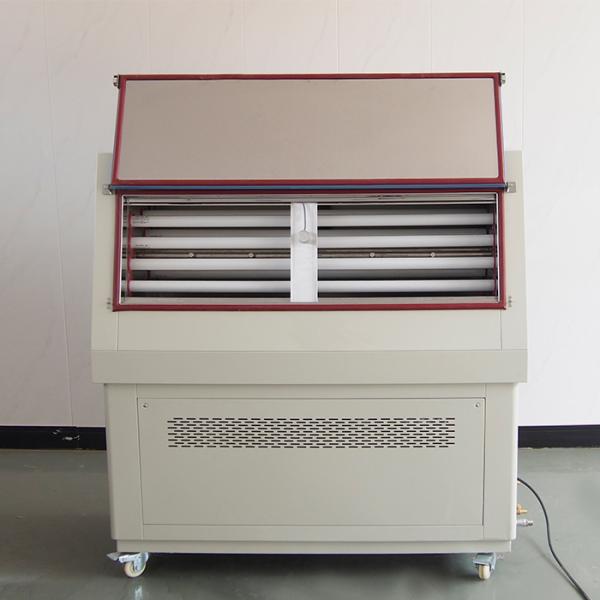

UV accelerated aging chamber

Temperature Range:Ambient ～ 90 ℃ ±2℃

Black Panel Temperature (BPT):35 ～ 80 ℃

Bandwidth:290 ~ 400nm

Feature

Weathering aging chamber

◆Inner box material:SUS304 high quality stainless steel light board

◆Sample holder material:SUS304 high quality stainless steel strip

◆Control system:Digital programmable temperature display

◆Safety system: protection for over-temperature, timing, overload and fan overheating

ASTM G155 Xenon Test Chamber Weathering Accelerated Aging Chamber
