Water Cycle UVB313 UV Aging Test Chamber
Water Cycle UVB313 UV Aging Test Chamber
Water Cycle UVB313 UV Aging Test Chamber
Water Cycle UVB313 UV Aging Test Chamber
Water Cycle UVB313 UV Aging Test Chamber
Water Cycle UVB313 UV Aging Test Chamber
Water Cycle UVB313 UV Aging Test Chamber
Water Cycle UVB313 UV Aging Test Chamber
Specifications
Brand Name :
LIB
Model Number :
UV-SI-260
Certification :
CE,RoHS,
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal
Supply Ability :
140 sets / quarter
Delivery Time :
3-12 days
Packaging Details :
Wooden Box standard export package
Name :
UV Aging Test Chamber
UV Lamp :
UVA 340,UVB313
Temperature range :
Ambient~90℃ ±2℃
Black Panel Temperature :
BPT 30~80℃
UV wavelength :
290 ~ 400nm
Water Cycle :
Water Spray Cycle system
Description

Water Cycle UVB313 UV Aging Test Chamber

Description

UV aging test chamber apply for variety of industrial products of performance reliability test, forecast products damage caused by in the sun, rain, humidity and dew conditions, test purpose including bleaching, color, brightness down, powder, crack, blur, embrittlement, the intensity decreased and oxidation.

Standard

Standard of uv aging test chamber

ASTM D4329, D499, D4587, D5208, G154, G53, ISO 4892-3, ISO 11507, EN 534, prEN 1062-4, BS 2782, JIS D0205, SAE J2020.

Specification

Name UVB313 UV Aging Test Chamber

Model

UV-260

UV-SI-260

Internal dimensions (mm)

450*1170*500

450*1170*500

Overall dimensions (mm)

680*1300*1500

680*1300*1500

Capacity of test specimens

48 pieces

Individual specimen size is 75mm * 150mm

48 pieces

Individual specimen size is 75mm *150mm

Controller

Programmable color display touch screen controller

Programmable color display touch screen controller

Temperature range

Ambient~90℃ ±2℃

Ambient~90℃ ±2℃

Humidity range

≥95％R.H ±2%R.H

≥95％R.H ±2%R.H

Black Panel Temperature

BPT 30~80℃

BPT 30~80℃

Irradiation Source

Fluorescent UV lamps (8) - 40 W

Fluorescent UV lamps (8) - 40 W

UV wavelength

290 ~ 400nm

290 ~ 400nm

Irradiance Control

N/A

0.3 ~ 20 W/㎡(340 nm / 313 nm)

Water Spray

Spraying water

Spraying water

Distance of Specimen and lamp

50mm

50mm

Nominal power

5000W

5500W

Power Supply

380V 50HZ

380V 50HZ

Design Details

Water Cycle UVB313 UV Aging Test Chamber Water Cycle UVB313 UV Aging Test Chamber

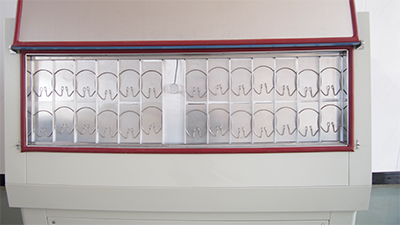

Sample Shelf 8 UV Lamp
Water Cycle UVB313 UV Aging Test Chamber Water Cycle UVB313 UV Aging Test Chamber
Programmable controller Automatic water inlet

Feature

1. uv weathering chamber,Inner cabinet is made of stainless steel, out shell spurts models processing.

2. UVA or UVB assembly eight UV lamps, front and rear side of the distribution.

3.UV weatherometer,Programmable controller, LCD touch screen

4.Bilateral drainage system. To ensure that the chamber clean, not wet.

UV Lamp

UV weathering tester,About the lamp, we provide Q-lab UVA340, UVB313 lamp, In principle UVB-313 lamp have better accelerated aging effects than UVB-340 faster and more obvious, but in weathering test in terms of reproducibility the UVB-340 is better than UVB-313, its all depend customers on the experimental test of time urgency and critical of the jobon.

Water Cycle UVB313 UV Aging Test Chamber Water Cycle UVB313 UV Aging Test Chamber
