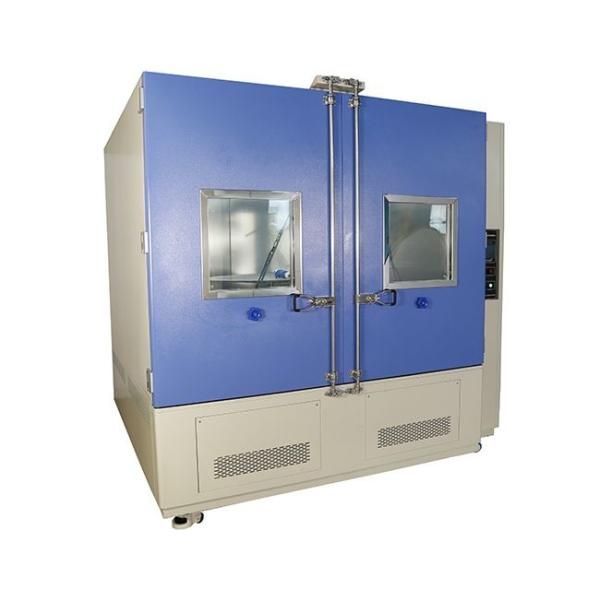

Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Water Resistance IP Rating Test Chamber 720L 2740L
Specifications
Brand Name :
LIB
Model Number :
R-800
Certification :
IEC60529,CE,RoHS,
Place of Origin :
china
MOQ :
1 Set
Price :
USD3890 ~ USD15000 / SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
18 days ( check if have stock)
Packaging Details :
Wooden cases standard export package
Oscillating tube radius :
400mm
Swing angle of oscillating tube :
0 to ±180° （ adjustable）
Nominal power :
3500W
Usage :
Universal Testing Machine,Auto Testing Machine,Textile Testing Instrument,Rain Water Spray Test Chamber,Lab and Medical Test
Warranty :
3 years
Description :
IP Rating Test Chanmber
Description

Water Resistance IP Rating Test Chanmber

Description

IP (or "Ingress Protection") ratings are defined in international standard EN 60529 (British BS EN 60529:1992, European IEC 60509:1989). They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture.

LIB is provided in the IEC60529 standard,IPX1 IPX2 IPX3 IPX4 IPX5 IPX6 IPX7 IPX8 IPX9K ip rating test chanmber.and IP dust test chamber

Parameters

IPX1 IPX2 IPX3 IPX4 Test Chamber Water Resistance IP Rating Test Chamber 720L 2740L
Name IP Water Test Chamber
Model R-800 R-1200
Internal Dimensions (mm) 900*900*900 1400*1400*1400
Overall Dimensions (mm) 1120*1460*1660 1600*1950*2100
Interior Volume (L) 720 2740
Drip tray size (mm) 600*600 900*900
Spraying Hole Diameter φ0.4mm
Hole Spacing 50 mm
Swing Angle of Oscillating Tube 0 ~ ±180° (Adjustable)
Turntable Rotation Speed 1r/min (Adjustable)
Oscillating Tube Radius 400mm 600mm

IPX5 IPX6 Test Chamber Water Resistance IP Rating Test Chamber 720L 2740L
Workroom dimension (mm) 800*800*800 D*W*H
External dimension (mm) 950*3150*1800 D*W*H
Diameter of Turntable (mm) 600
Turntable Rotation Speed 0~7r/min (Adjustable)
Internal Diameter of IPX5 Nozzle 6.3mm
Internal Diameter of IPX6 Nozzle 12.5mm
Water Flow Rate IPX5/ IPX6 12.5L/min ±5% / 100L/min ±5%

Characteristic

1.IP rating test chanmber,variety of models to meet different test requirements.

2.Capacity of 729 liters and 2700 liters

3.IPx1 IPx2 IPx3 IPx4 tests can be performed

4.Protection against drip, spraying and splashing water

5.Control and adjust water flow
