IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
Specifications
Brand Name :
LIB
Model Number :
R-800
Certification :
IEC60529,CE,RoHS,
Place of Origin :
china
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
18 days ( check if have stock)
Packaging Details :
Wooden cases standard export package
Name :
IPX4 Test Equipment
Standard :
EN60529,ISO2248,IEC60529
Drip tray size :
600*600 mm(IPX1 IPX2)
Oscillating Tube Radius :
400mm(IPX3 IPX4)
Controller :
Programmable color display touch screen controller, PC Link with software, R-232 interface
Warranty :
3 Years
Description

Description

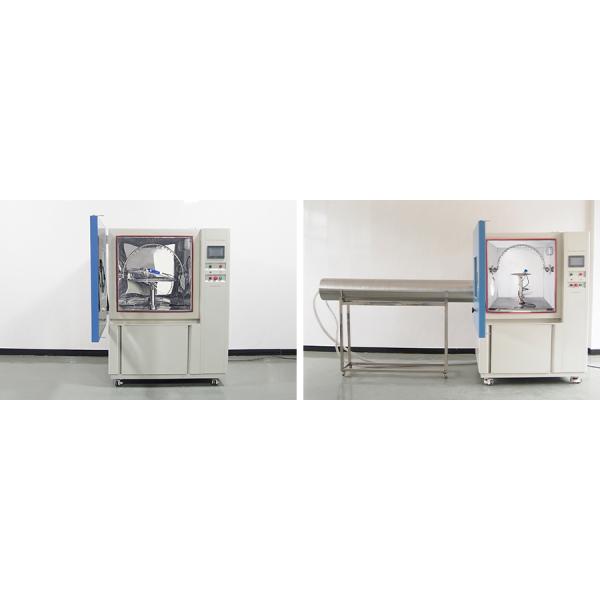

LIB ipx4 test equipment simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. Ipx4 test chamberis widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.

Advantage

The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted

Main Technical Parameter

Name IPX4 Test Equipment
Model R-800
Internal dimensions (mm) 800*800*800
Overall dimensions (mm) 1020*1360*1560
Oscillating tube radius 400mm(IPX1 IPX2)
Spraying hole diameter φ0.4mm(IPX1 IPX2)
Hole spacing 50 mm
Oscillating tube range ±45°, ±60°, ±90°, ±180°(theoretical value) (IPX3 IPX4)
Turntable rotation speed 1r/min, or steeples speed regulating (optional)
Controller Programmable color display touch screen controller, PC Link with software, R-232 interface
Water pressure control Flow meter
Observation window Large viewing window with wiper
Water supply system Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving
Safety protection device Electric leakage, short circuit, motor overheating, over-current protection
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power AC380V 50HZ
Standard IEC 60529

IP Laboratory

LIB can set up a professional IP IEC60529 laboratory, Provide high quality water and dust test equipment,and provide transport, installation, training, after-sales services

IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display
IPX1 IPX2 IPX3 IPX4 Water Ingress Test Equipment IPX5 IPX6 Water Jetting Test Device
IEC60529 Standard IPX4 Test Equipment Rs-232 Interface Color Display

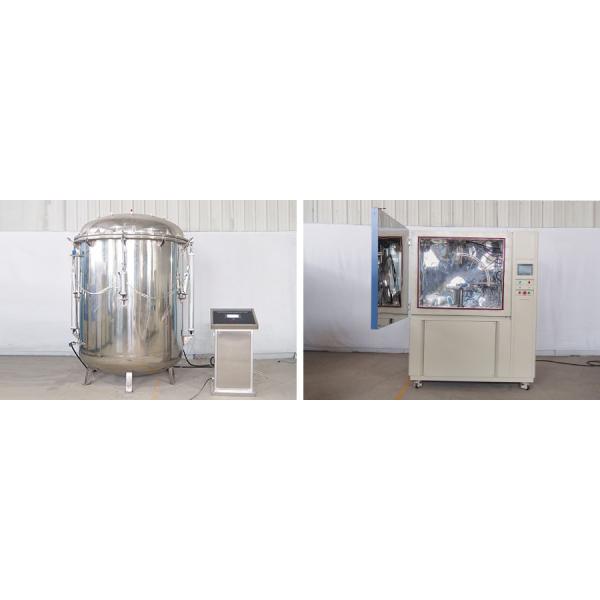

IPX7 IPX8 Water Immersion Tank IPX9K High Pressure Water Test Device

Service

1. Best after sales service: 3 year free parts maintenance

2. Customization is available & welcomed
