Specifications
Brand Name :
LIB
Model Number :
R-1200
Certification :
CE,ROHS,
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
140 Sets/ Quarter
Delivery Time :
3-10 days
Packaging Details :
Wooden cases standard export package
Type :
IPX3 Test IPX4Test
Standard :
IEC 60529, ISO20653
Water System :
Water Circulation System
Interior Material :
SUS304 stainless steel
Application :
Lamps, Electric cabinets;
Controller :
Programmable controller
Description

IPX3 Test Chamber

IPX3 test chamber,rain, sea water, river water, damages products and materials. The damage causes unpredictable economic losses every year, mainly includes corrosion, fading, deformation, strength reduction, swelling, mold, etc.

Especially for electrical product that is easily broken into a fire due to a short circuit caused by rain. Therefore, IP code testing for specific products or materials is an essential key procedure.

Main Parameters

Name

IPX3 Test Chamber

Model

R-800

R-1200

Internal Dimensions (mm)

900*900*900

1400*1400*1400

Overall Dimensions (mm)

1120*1460*1660

1600*1950*2100

Oscillating Tube Radius

0 ~ ±180° (Adjustable)

600mm

Swing Angle of Oscillating Tube

φ0.4mm

Turntable Rotation Speed

1r/min (Adjustable)

Water Pressure Control

Flowmeter

Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link

Build-in Water Tank(mm)

370*375*950

View Window Size(mm)

475*475

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Environmental Conditional

5℃～+35 ℃ ≤85% RH

Standard

IEC 60529, ISO20653

Electric Cabinets IPX3 Water Spray Test Chamber Programmable Controller

Details

Electric Cabinets IPX3 Water Spray Test Chamber Programmable Controller Electric Cabinets IPX3 Water Spray Test Chamber Programmable Controller

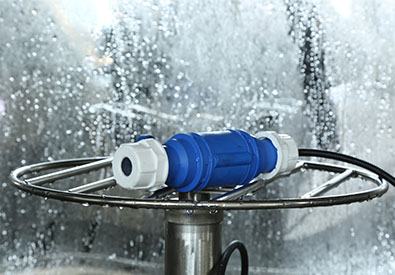

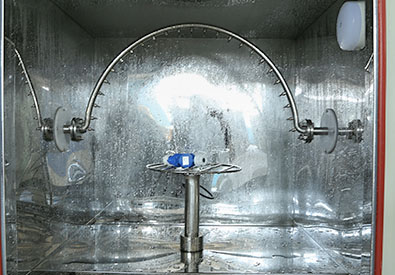

Oscillating Tube Turntable

Feature

1. It is suitable for IPX3 and IPX4 waterproof level test.

IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber

2, Ipx4 test chamber,The shell is made of high-quality steel plates, beautiful and durable.

3. The inner chamber, oscillating tubes, turntable and other wading parts are all made of SUS304 stainless steel to ensure no rust for long time use.

4. Rain drip test chamber oscillating tubes adopts flange joints, which is convenient for installing and changing the oscillating tubes; the nozzle contact position on the oscillating tubes adopts brass cone design, which is convenient for installing the spray nozzle.

5. The water supply pipeline is equipped with a filter, which can filter impurities in the water, so as to prevent nozzle clogging.

6. The turntable uses a stepping motor, the speed can be set on the touch screen, can rotate clockwise or counterclockwise.
