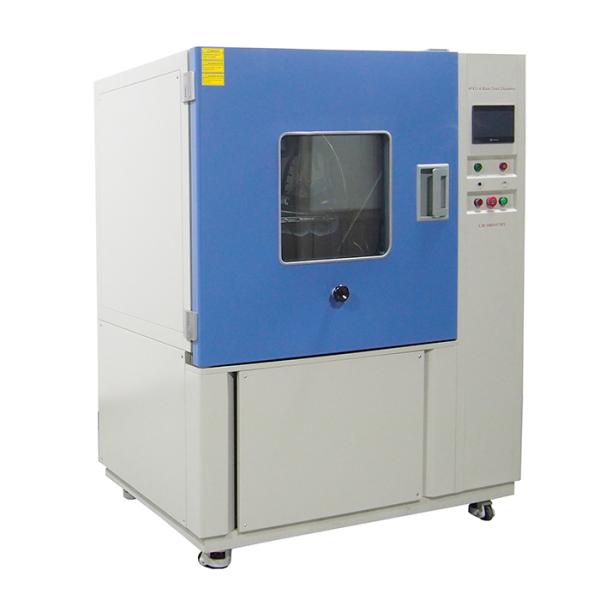

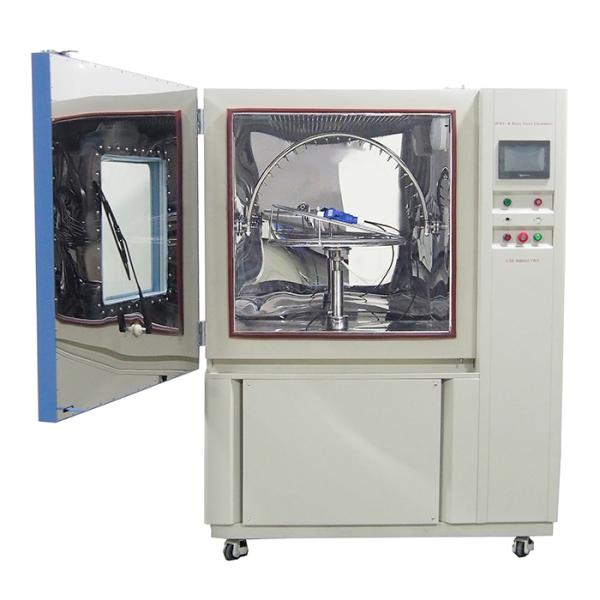

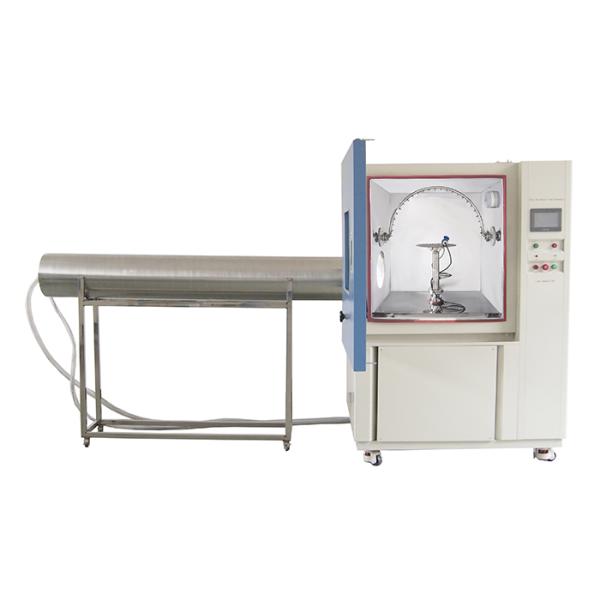

IEC60529 Water Spray Test Chamber For Exterior Lighting
IEC60529 Water Spray Test Chamber For Exterior Lighting
IEC60529 Water Spray Test Chamber For Exterior Lighting
IEC60529 Water Spray Test Chamber For Exterior Lighting
IEC60529 Water Spray Test Chamber For Exterior Lighting
IEC60529 Water Spray Test Chamber For Exterior Lighting
IEC60529 Water Spray Test Chamber For Exterior Lighting
IEC60529 Water Spray Test Chamber For Exterior Lighting
Specifications
Brand Name :
LIB
Model Number :
R-1200
Certification :
CE,ROHS,
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
140 Sets/ Quarter
Delivery Time :
3-10 days
Packaging Details :
Wooden cases standard export package
Type :
IPX1 IPX2 IPX3 IPX4 Test
Standard :
IEC 60529, ISO20653
Water System :
Water Circulation System
Interior Material :
SUS304 stainless steel
Application :
Radar cone top, aerospace
Controller :
Programmable controller
Description

IEC60529 Test Chamber

IEC60529 test chamber for exterior lighting and signaling devices and automotive protective shell lamps, can provide realistic simulation of electronic products and Components during transport and use may be subject to various environmental and water spray sprinkler test.

In order to achieve the waterproof performance testing of various products

Main Parameters

Name

IEC60529 Test Chamber

Model

R-800

R-1200

Internal Dimensions (mm)

900*900*900

1400*1400*1400

Overall Dimensions (mm)

1120*1460*1660

1600*1950*2100

Oscillating Tube Radius

0 ~ ±180° (Adjustable)

600mm

Swing Angle of Oscillating Tube

φ0.4mm (IPX3 X4)

Turntable Rotation Speed

1r/min (Adjustable) (IPX3 X4)

Water Pressure Control

Flowmeter

Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link

Build-in Water Tank(mm)

370*375*950

View Window Size(mm)

475*475

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Environmental Conditional

5℃～+35 ℃ ≤85% RH

Standard

IEC 60529, ISO20653

Types of IEC60529 Test Chamber

LIB can provide all IP test equipment

IEC60529 Water Spray Test Chamber For Exterior Lighting IEC60529 Water Spray Test Chamber For Exterior Lighting
IPX1X2 drop test equipment IPX3X4 water test equipment
IEC60529 Water Spray Test Chamber For Exterior Lighting IEC60529 Water Spray Test Chamber For Exterior Lighting
IPX5X6 test equipment (D 6.3 mm, D 12.5 mm nozzle); IPX7X8 water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable);

Advantage

1. With water circulation system, save water

2. With water filtration system, remove impurities in water

3. Standard equipment, support customization

4. Support the establishment of IP laboratory (IPX1~IPX9K,dust Chamber)
