Needling Speed 10 ~ 40mm / S Safety Test Equipment Battery Needle Test Machine

Product Name: Battery Needle Tester

Model: JD-6007

First, the product name: battery needle test machine

Second, the product model: JD-6007

Third, the product overview:

This machine is suitable for simulating various types of batteries to be subjected to needle sticking during transportation and storage. The test shall be carried out at an ambient temperature of 20 °C ± 5 °C. The battery with the thermocouple (the contact of the thermocouple is fixed on the large surface of the battery) shall be placed in a fume hood with an rust-free steel of 2-8 mm in diameter. The needle pierces the center of the largest surface of the battery at a speed of 10mm/s to 40mm/s, keeps it for any time and observes the test results. The battery does not explode and does not ignite.

Fourth, the design basis:

GB 31241-2014, GB/T 8897.4-2008, YD/T 2344.1-2011, GB/T 21966-2008, MT/T 1051-2007, YD 1268-2003, GB/T 19521.11-2005, YDB 032-2009, UL 1642, UL 2054, IEC 62281, IEC 60086

V. Equipment technical parameters:

1. Steel needle: φ5mm～φ8mm high temperature resistant steel needle, length is 100mm

2, acupuncture stroke: 200mm (can be customized)

3, can be clipped battery distance: 200mm

4. Unit conversion: Kg, N, LB

5, acupuncture speed: 10 ~ 40mm / s

6, needle force value: 1 ~ 300Kg

7, force value display: LCD display or touch screen display

8, force measurement accuracy: ± 1%

9, drive mode: cylinder drive

10, box material: inner box stainless steel, outer box cold-rolled steel plate spray treatment

11. Features: The rear side of the box is designed with an air outlet, and the box is equipped with lighting

12. Weight: about 100kg

13, power: 1 ∮, 220V, 50HZ

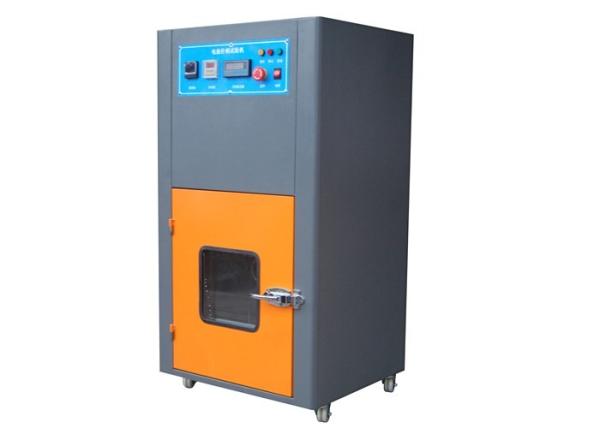

Six, equipment reference picture:
