Force Value Range 1 ~ 20kn Safety Test Equipment Battery Squeeze Acupuncture Machine

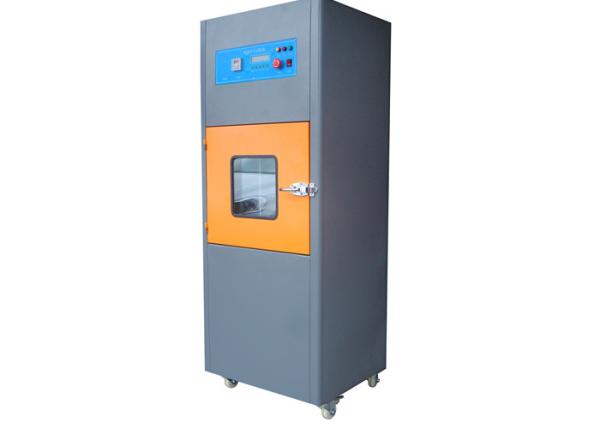

Product Name: Battery extrusion acupuncture machine

Model: JD-6012

First, the product name: battery squeeze acupuncture machine

Second, the product model: JD-6012

Third, the product overview:

The battery extrusion acupuncture machine is suitable for simulating various types of batteries. When the battery is used, transported, stored or treated, the battery is subjected to extrusion and acupuncture. The test should be carried out at an ambient temperature of 20 ° C ± 5 ° C. The battery with the thermocouple (the contact of the thermocouple is fixed on the large surface of the battery) is placed in the fume hood, and the battery is pierced by the non-corrosive steel needle with a diameter of 2-8mm at a speed of 10mm/s to 40mm/s. The center position of the surface, keep it for any time and observe the test results. The battery does not explode and does not ignite.

Fourth, the design basis:

GB 31241-2014, GB/T 8897.4-2008, YD/T 2344.1-2011, GB/T 21966-2008, MT/T 1051-2007, YD 1268-2003, GB/T 19521.11-2005, YDB 032-2009, UL 1642, UL 2054, IEC 62281, IEC 60086

V. Equipment technical parameters:

Extrusion parameters:

1. Drive mode: hydraulic drive

2. Force range: 1 ~ 20kN

3. Force measurement accuracy: 0.1N

4. Unit conversion: kg, N, lb

5, extrusion stroke: 200mm or 300mm

6, force value display: LCD display

7, battery extrusion head: standard extrusion head, area ≥ 20cm2

8, the degree of extrusion: the extrusion pressure reached 13 ± 0.2kN, maintained for 1min.

9, box material: inner box stainless steel, outer box cold-rolled steel plate spray treatment

10. Features: The rear side of the box is designed with an air outlet and a pressure relief device.

11, test space: 300x300x300mm (length x width x height)

12, Dimensions: 700x800x1830mm (length x width x height)

13, weight: about 220kg

14, power: AC380V, 50HZ

Acupuncture parameters:

1. Steel needle: φ5mm～φ8mm high temperature resistant steel needle, the length is 100mm (can be specified).

2, acupuncture stroke: 200mm or 300mm

3, can be clipped battery distance: 200mm

4. Unit conversion: Kg, N, LB

5, acupuncture speed: 10 ~ 40mm / s (can be specified)

6, needle force value: 1 ~ 300Kg (optional)

7, force value display: LCD display or touch screen display

8, force measurement accuracy: ± 1%

9, drive mode: cylinder drive or hydraulic drive

10, box material: inner box stainless steel, outer box cold-rolled steel plate spray treatment

11. Features: The rear side of the box is designed with an air outlet and a pressure relief device.
