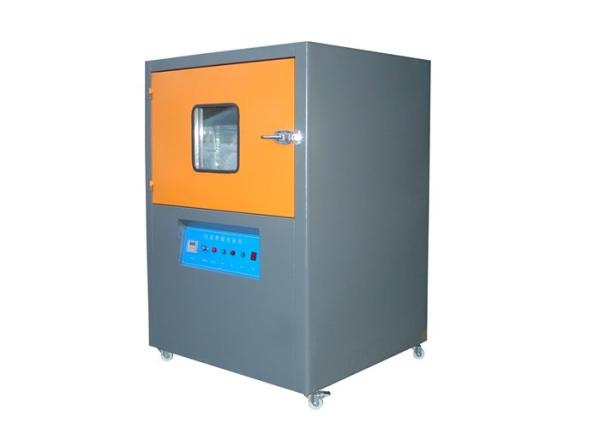

Push Button Safety Monitoring Equipment Weight 100kg Battery Burning Test Machine
Push Button Safety Monitoring Equipment Weight 100kg Battery Burning Test Machine
Specifications
Brand Name :
JIEDONG
Model Number :
JD-6008
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
80 sets per month
Delivery Time :
80 sets per month
Packaging Details :
standard export plywood
burner :
Bunsen burner
Flame application time :
0~999.9 seconds ± 0.1 seconds
Test round hole surface diameter :
102mm
Flame on the screen height :
38mm
Octagonal net cover height :
12″(305mm)
Test the protection bin volume :
730x740x500mm
Octagonal cover material :
Aluminum mesh
Octagon net width :
The distance between each pair is 24′′ (610mm)
Description

Push-button Safety Monitoring Equipment Weight 100kg Battery Burning Test Machine

Product Name: Battery Burning Test Machine

Model: JD-6008

First, the product name: battery burning test machine

Second, the product model: JD-6008

Third, the product overview:

This machine is suitable for lithium battery (or battery pack) flame resistance test. Drill a circular hole with a diameter of 102mm on an experimental platform, place a wire mesh on the round hole, place the battery under test on the wire mesh screen, install an octagonal aluminum mesh around the sample, and then ignite The burner heats the sample until the battery explodes or the battery burns, and the combustion process is timed.

Fourth, meet the criteria:

UL2272-2016, UL 2271-2013, GB/T 31241-2014, GB/T 18287-2013, GB/T 8897.4-2008, YD/T 2344.1-2011, GB/T 31485-2015

V. Equipment technical parameters:

1, control mode: button type

2. Burner: Bunsen burner, the inner diameter of the nozzle is 9.5mm, and the length is about 100 mm.

3, flame application time: 0 ~ 999.9 seconds ± 0.1 seconds

4, test round hole surface diameter: 102mm

5, test mesh sieve: woven from stainless steel wire with a diameter of 0.43mm (0.017inch) into a US inch mesh screen with 20 grids

6, the flame on the screen height: 38mm

7. octagonal net cover width: the distance between each pair of faces is 24′′ (610mm), octagonal, and the eight sides are movable for easy replacement and disassembly.

8, octagonal net cover height: 12′′ (305mm)

9. Octagonal cover material: aluminum mesh, woven from aluminum wire with a diameter of 0.010inch (0.25mm) into a mesh of 16-18 mesh per inch.

10. Test part: stainless steel material, the door is two layers of 5mm thick tempered glass, the state of the tested sample can be observed, the rear side is designed with an exhaust fan, and an external exhaust interface is reserved.

12, test the protection warehouse volume: 730x740x500mm

13. Combustion gas: methane or liquefied petroleum gas (customer-owned)

14, using the power supply: 1 ∮, 220V, 50/60Hz,

15, equipment weight: about 100kg
