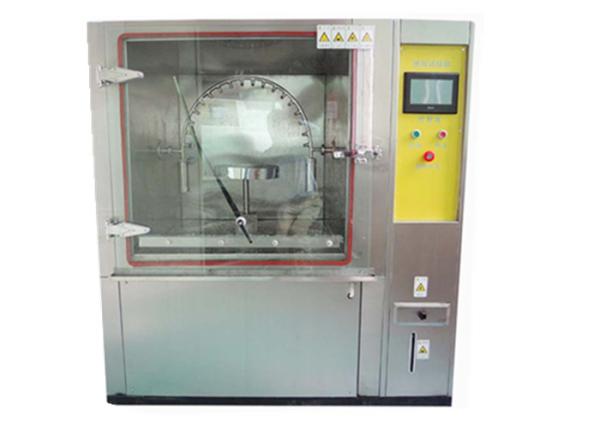

Box type rain test JD-XP34-512

First, the use of equipment:

Mainly used in communication products, automotive parts (such as car rearview mirrors, car audio, automotive electronics, automotive lighting, automotive

Products such as lamps, motorcycle lamps, motorcycle rearview mirrors, outdoor lighting and signal devices are tested for waterproof performance and IP waterproof rating.

Second, the equipment structure:

The inner box of the waterproof test box is made of SUS304 stainless steel plate, and the water tank is made of SUS304 stainless steel plate.

Low and no water indication, the spray pipe is made of seamless stainless steel pipe, the turntable is made of stainless steel, the nozzle is detachable and equipped with plugs.

The customer can replace it at any time according to the number of nozzles required by the standard. The test box door is a single door. Left open with large viewing window and wiper

Brush box type rain test box, waterproof test box,

Waterproof testing machine meets the standards: GB4208, IEC60529, GJB150, GB10485 IPX4 IPX3

Third, the main parameters:

1, model: JD-XP34-512

2, working size: 800 * 800 * 800 W * H * D (mm)

The size of the outer box is about: 1600*2000*1300mm

3, water spray ring diameter 600mm

4, water pipe diameter φ16mm

5, the diameter of the nozzle hole φ0.8 mm

6, aperture spacing 50mm

7, swing tube swing: 1-220 ° (60 ° 90 ° 130 ° adjustable) stepper motor control

8, rain water pressure: 50 ~ 300kpa (adjustable)

9, test bench size: ¢ 400mm

11, swing tube: SUS304 stainless steel plate

14, protection device: leakage protection

15, power (V): 220V

16, power (KW): 3KW

17, controller: Taiwan Weilun controller

Fourth, the box structure:

1. The inner shell material of the box is made of high quality stainless steel plate SUS304

2, large-area visible glass door, easy to observe the test sample inside the test box;

3. The bottom of the test box is made of high-quality fixed PU movable wheel, which is convenient for users to move;

4. Sample stage with adjustable speed;

5, water filter device

V. Equipment use conditions

1, voltage: single-phase three-wire system 220V ± 10%; 50 Hz;

2, the ambient temperature: 5 ~ 28 ° C; (up to 35 ° C, but will affect some performance);

3. Ambient humidity: < 85% R.H (25 ° C);

4, atmospheric pressure: 86 ~ 106Kpa;

5. Environmental conditions: no strong vibration around the equipment site, no strong electromagnetic field interference, no high concentration of dust and corrosive substances, no direct sunlight

Irradiation or other heat source directly radiates.

6. The equipment should be placed horizontally in a well-ventilated test room, and there should be sufficient space around it for operation and maintenance.

Six, the main configuration list

Motor: YK3913A-H China Guangdong YAKD

Drive: 3D56M China Guangdong YAKD

Switching Power Supply: NES-350-48 Taiwan Shilin

Flow meter: LZS-15D China Guangdong L2T

Pressure gauge: HFDY Taiwan Guanya

Jet self-priming pump BJZ037 China Lingxiao, Guangdong, China

Controller: Taiwan Weilun

Seven, equipped with technical information and accessories

Technical information: product certificate, product instruction manual, warranty card, instrument manual;

1 cable;

Eight, after-sales service

 Under the conditions of product precautions, installation and use rules, the product will be free of charge within one year from the date of shipment due to the quality of the product itself, and will be responsible for life-long maintenance service.

 Imported UV lamps are normal test consumables, and their UV irradiance will be greatly reduced after the life is exhausted. It is not covered by the free warranty items for the following year.

 If there is a quality problem in the product, the phone will be answered within 15 minutes after receiving the repair call (or fax). If the problem cannot be solved in the phone, it will be processed by our professional maintenance personnel within 24 hours.

 Our company provides users with free product use, maintenance consultation and technical consulting services for a long time. Our company has a special training department, which provides professional technical training for technicians, sales personnel and customer users from time to time, so that it can eliminate equipment failures for users in the shortest time and ensure the smooth operation of users.

 Outside the warranty period, the spare parts are provided for a long time, and the charging standard is reasonable (only the corresponding cost will be charged according to the cost of the accessory outside the warranty period).
