45 Degree Test Angle Wear Test Machine Electric Pencil Hardness Tester

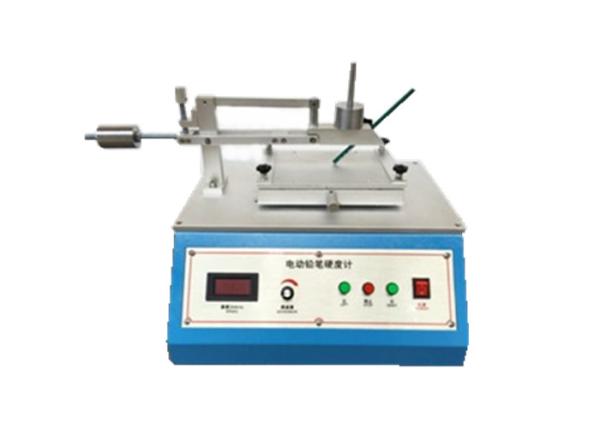

Electric pencil hardness tester JD-3026

Equipment introduction:

The electric pencil hardness tester is used for the hardness test of the outer casing of digital products such as mobile phone case and notebook computer case, and the surface hardness test of various metal coatings, decorative materials, synthetic leather, touch screen and tempered film. This machine marks the surface hardness of the product by scratching the surface of the product with a pencil with a certain hardness and marking the hardest pencil with no damage. This machine meets the requirements of GB/T6739-2006, ASTMD3363, ISO15184, BS3900-E19, ECCA-T4/1, JIS, CNS and so on.

Technical Parameters:

1, test angle: 45 degrees

2. Test load: 250, 500, 750, 1000g

3, load weight: 500g one, 250g two

4, balance weight: 750g one

5, test platform moving speed: 0.5-8mm / s (knob adjustable, LCD display)

6, travel distance: 0-80mm (electric)

7, platform size (L × W): 250 × 180mm

8, test fixture: a set of fixed sample fixture

9, machine size: 450 × 400 × 400mm

10, working power: AC220V, 50HZ

11, equipment weight: 30kg

12, the main accessories: 6B-6H Chinese pencil each one, load weight three, balance weight one, oak

a piece of leather, a piece of sandpaper, a plastic storage box, etc.

Features:

1. The cabinet is treated with electrostatic baking varnish, the platform is made of pure aluminum, the surface is anodized, the whole machine is beautiful and generous, the design is reasonable, the structure is tight, the operation is stable and meets the standard;

2, the installation of high-precision photoelectric sensor switch, the speed is adjustable, digital display, simple and clear;

3, the load weight can be superimposed, the balance weight can be adjusted, widely used in different products and standard requirements;

4, the use of high-precision motors, precision screw and imported bearings for the transmission mechanism, accurate operation.
