Wire Bending Glow Wire Test Equipment Thermal Penetration Depth 7mm ± 0.5mm
Wire Bending Glow Wire Test Equipment Thermal Penetration Depth 7mm ± 0.5mm
Specifications
Brand Name :
JIEDONG
Model Number :
JD-3052
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
80 sets per month
Delivery Time :
20 workdays after order confirmed
Packaging Details :
standard export plywood
Glow wire temperature :
Adjustable from 500 to 1000 °C
Hot time :
0-99 minutes and 99 seconds adjustable
Lightning time :
0-99 minutes and 99 seconds, manual pause
Extinguished time :
0-99 minutes and 99 seconds, manual pause
Glow wire applies pressure to the sample :
0.8-1.2N
Studio volume :
0.5 m3
Glow wire :
Φ4 mm nickel-chromium wire
Thermocouple :
Φ0.5mm K-type armored thermocouple
Description

Thermal Penetration Depth 7mm ± 0.5mm Wire Bending Glow Wire Test Equipment

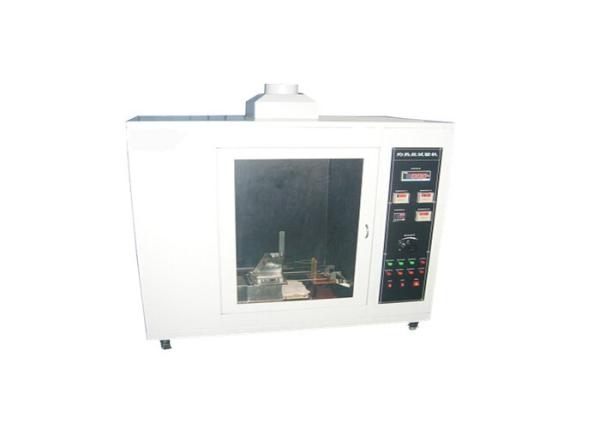

Glow wire testing machine JD-3052

product description:

The glow wire tester heats the specified material (Ni80/Cr20) and the shape of the heating wire (Φ4mm nickel-chromium wire) to the test temperature (550°C to 960°C) for 1 minute, and then burns at a specified pressure (1.0N). The hot test sample is 30s, and the ignition risk of the finished electrical and electronic equipment is determined according to whether the test sample and the mat is light-off or the ignition time; the light-off property and the light-off temperature (GWIT) of the solid insulating material and other solid combustible materials are determined. Flammability and flammability index (GWFI). The glow wire tester is suitable for the research, production and quality inspection departments of lighting equipment, low-voltage electrical appliances, electrical instruments, and other electrical and electronic products and their components.

Technical Parameters:

1. Glow wire temperature: adjustable from 500 to 1000 °C

2. Temperature tolerance: ±10°C at 500～750°C, ±15°C at >750～1000°C

3. Temperature measuring instrument accuracy ± 0.5

4. Hot time: 0-99 minutes and 99 seconds adjustable (usually 30s)

5. Light-off time: 0-99 minutes and 99 seconds, manual suspension

6. Extinguished time: 0-99 minutes and 99 seconds, manually paused

7. Thermocouple: Φ0.5mm K-type armored thermocouple (no warranty)

8. Glow wire: Φ4 mm nickel-chromium wire

9. Glow wire applies pressure to the sample: 0.8-1.2N

10. Hot penetration depth: 7mm ± 0.5mm

11. Reference standard: GB/T5169.10, GB4706.1, IEC60695, UL746A

12. Studio volume: 0.5 m3 (can be customized 0.75 m3 1 m3)
