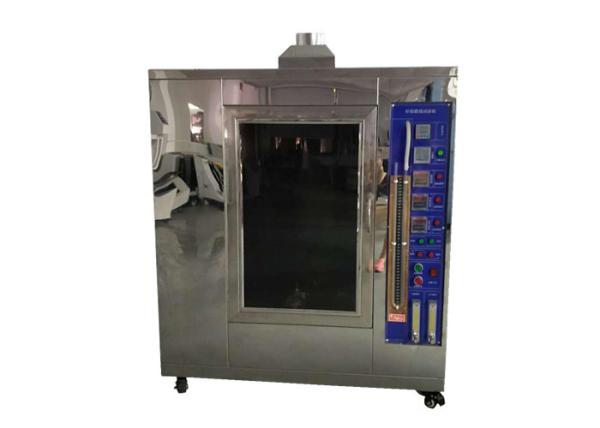

Gas Body 95% Butane Gas Steel Wire Bending Tester Needle Flame Burning Test Machine​

Needle flame burning test machine JD-3051

product description:

The needle flame burning tester uses a needle-shaped burner of a specified size (Φ0.9mm), and uses a specific gas (butane) to ignite the sample at a 45° angle to see if the sample is ignited and burned. And the length of the burn to assess the fire risk of small flames inside the equipment due to fault conditions. The needle flame test is a simulation test project using a small flame starting source program according to IEC60695 -11-5, GB/T5169.5-2008, GB4706.1-2005 and other standards. Applicable to the research, production and quality inspection departments of electrical and electronic equipment, components and components of lighting, low-voltage electrical appliances, household appliances, machine tools, electrical machinery, power tools, electronic instruments, electrical instruments, electrical connectors, accessories, etc. In the field of insulation materials, engineering plastics or other solid combustible materials.

Technical Parameters:

1. Needle burner: inner hole Φ0.5mm±0.1mm, outer diameter ≤Φ0.9mm, length ≥35mm, baking finish

2. Burner angle: tilted 45° (at test) or vertical (when adjusting flame height)

3. Burning time: 0-999.9s±0.1s adjustable (usually 30s)

4. Burning time: 0-999.9s ± 0.1s, automatic recording, manual suspension

5. Flame height: 12mm ± 1mm (with height measuring instrument)

6. Gas application: 95% butane gas (can be used in bottled lighter gas, customer-supplied)

7. Thermocouple: Φ0.5mm imported armored (K type) thermocouple

8. Test background: black background

9. Test process: automatic control of test procedures, independent ventilation

10. Temperature test range: 0~1000°C

11. Flame temperature requirement: the time from 100 °C ± 2 °C to 700 °C ± 3 °C within 23.5 seconds ± 1 second

12. Reference standard: IEC60695 -11-5, GB/T5169.5-2008, GB4706.1-2005

13. Studio volume: 0.5 cubic, stainless steel chassis

14. Outer dimensions of the device: about 1000mm wide × 650mm deep × 1300mm high
