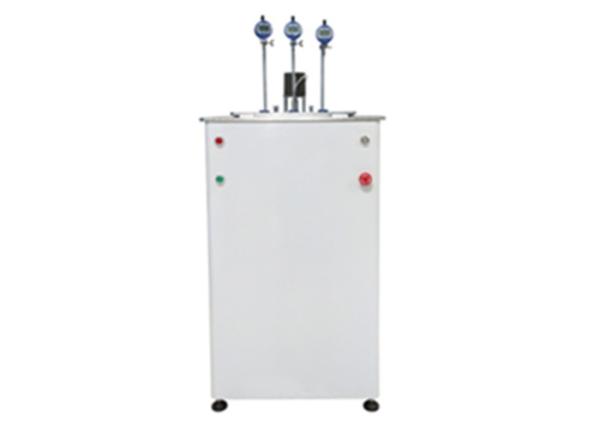

Vicat Softening Point Determination Rubber Tester Deformation Measurement Range 0-3mm

Thermal deformation, Vicat softening point tester

product description:

Microcomputer controlled thermal deformation, Vicat measuring instrument, is to adapt to the rapid development of the plastics industry and improve the research and testing level of materials, using the latest international and national standards: GBT8802, ATM D601-01, ISO75-1: 1993 "Plastic - Determination of load deformation temperature, ISO 306:1994 "Determination of plastic-thermoplastic Vicat softening point temperature", GB/T1633-2000 "Determination of thermoplastic Vicat softening point temperature", GB/T1634-2004 "Plastic-load Designed to determine the deformation temperature, it uses computer technology and operates on the WindowsXP operating platform to make the product more stable, simple and clear, and highly automated. It is currently used for deformation and softening of non-metallic materials in China. The most advanced testing instrument for temperature.

Product Features:

1. Real-time display of test temperature and temperature-deformation curve;

2. During the test, by inputting the size of the sample, the load quality required for the test can be automatically calculated;

3. The upper line temperature and deformation amount are arbitrarily set within the range of use; the upper limit temperature protection function with automatic control is provided;

4. The error is automatically corrected by the software;

5. The test curve color can be arbitrarily set, can be displayed and hidden in real time, and the curve width can be arbitrarily converted;

6. When the test is completed or the upper limit temperature is reached, the upper limit temperature protection function of automatic control is provided; the alarm is automatically activated, and the heating is automatically stopped.

7. After completion, print the test curve and test report. Query the historical records of previous trials and redraw the test curves of previous trials.

8. The sample holder is automatically lifted and lowered, and the sample is convenient to install;

9. The sample rack standard is: 3

10. The software has the functions of doing two different tests of Vicat and thermal deformation on one machine;

Main performance indicators:

1. Temperature control and measurement range: room temperature - 300 ° C

2. Heating rate: 120 ° C / h (12 ± 1 ° C / 6 min)

3.50 ° C / h (5 ± 0.5 ° C / 6 min)

4. Temperature resolution: 0.1 ° C, maximum temperature error: 0.5 ° C

5. Deformation measurement: range 0-3mm

6. Maximum error 0.01mm

7. Deformation resolution 0.001mm

8. The thermal deformation test span is adjustable, and the adjustable range is 60mm-120mm.

9. Stirring system: Double stirring motor, mixing more evenly.

10. Heating medium: methyl silicone oil (low viscosity is good) or transformer oil (used within 200 °C), fuel tank plus 12 liters.

11. Heating power: 4KW Power supply: 220V±10% 20A50Hz-60 Hz

Configuration

1, a set of computers (configuration: a set of computers, including test software)

2, the host one

3, sample rack three

4, hot deformation head three

5, Vicat needles three

6, weight (including boxed weight) full set
