Environmental Climate Salt Spray Test Chamber / Corrosion Testing Apparatus Programmable
Environmental Climate Salt Spray Test Chamber / Corrosion Testing Apparatus Programmable
Environmental Climate Salt Spray Test Chamber / Corrosion Testing Apparatus Programmable
Environmental Climate Salt Spray Test Chamber / Corrosion Testing Apparatus Programmable
Environmental Climate Salt Spray Test Chamber / Corrosion Testing Apparatus Programmable
Environmental Climate Salt Spray Test Chamber / Corrosion Testing Apparatus Programmable
Environmental Climate Salt Spray Test Chamber / Corrosion Testing Apparatus Programmable
Environmental Climate Salt Spray Test Chamber / Corrosion Testing Apparatus Programmable
Specifications
Brand Name :
iqualitrol
Model Number :
HL-120-NS
MOQ :
1 set
Supply Ability :
5 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Case
Payment Terms :
T/T
Inner size :
120*85*50cm
Material :
PVC
Power :
AC220V, 15A, 1Ф, 50HZ
Compressed :
Air Pressure 6kgf/cm2
Spray quantum :
1.0~2.0(ml/80cm2/h)
NSS :
Test temperature: 35°C±1°C
Description

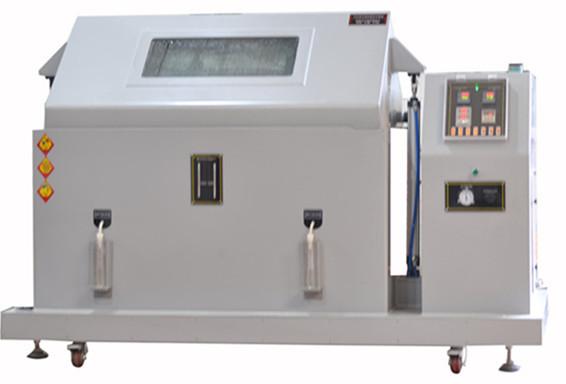

Programmable Environmental Climate Salt Spray Corrosion Test Chamber


Brief Introduction:
Salt spray test chamber is to test the anti-erosion quality of the surface of all materials after the rust-proof of painting,coating,electroplating,anoding and greasing.it carries out the anti-corrosive treatment to test the corrosion resistance of the products.

Features:
1. The whole machine is made of PVC hard plastic sheet, corrosion resistant, easy to clean, no salt spray leakage.


2. Adopt the touch-tone intelligent temperature control meter, multi-group PID automatic calculation, high control precision, can also select the LCD touch screen instrument.108L and 270L tester covers are covered with acrylic top cover.

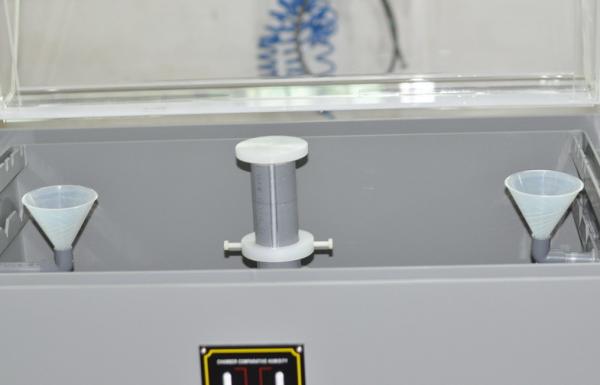

3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.


4. After the test, the automatic defog removal device can be used to observe the samples
5. Spray time: clearance/continuous spray can be adjustable, multi-system guarantee, safe and reliable.

Standards Conform:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM B117-97 salt spray test
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB 10587-89 salt spray test
9. CNS 4158 salt spray test
10. CNS 4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
ISO-9227, ASTM-B117, JIS-D0201, H8502, H8610, Z2371, GB/T10125

Technical Specifications:
Please Note Small Type of 60 and 90 do not meet standard of ASTM B117.

Button Model HL-60-SS HL-90-BS HL-120-NS HL-160-NS HL-200-NS
LCD touch screen Model HL -60-CS HL -90-CS HL -120-CS HL -160-CS HL -200-CS
Inner size (mm) W 600 900 1200 1600 2000
D 450 600 850 850 950
H 400 500 500 550 600
External size (mm) W 1130 1460 1900 2300 2700
D 630 910 1150 1150 1350
H 1070 1280 1500 1550 1600
Lab Capacity(L) 108 270 480 800 1440
Saline Capacity(L) 15 25 90 90 120
Inside Temperature (NSS ACSS) Test temperature : 35°C±1°C
(CASS) Test temperature : 50°C±1°C
Pressure Bucket Temperature (NSS ACSS) Test temperature : 47°C±1°C
(CASS) Test temperature : 63°C±1°C
Brine Temperature (NSS ACSS) Test temperature : 35°C±1°C
(CASS) Test temperature : 50°C±1°C
Test solution NSS: pure water + Nacl (PH6.5~7.2)
CASS: Pure water + NaCl + CuCl (PH3.0~3.2)

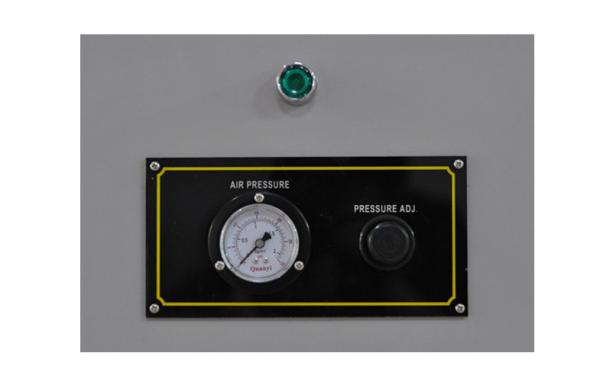

Compressed Air
Pressure		 2kgf/cm2 2kgf/cm2 6kgf/cm2 6kgf/cm2 6kgf/cm2
Chamber Material polyvinyl chloride (PVC)
Spray quantum 1.0~2.0(ml/80cm2/h)
Safety device Over-temperature protection , leakage protection
Heater Corrosion-resistant titanium tube
Temperature sensor Platinum Resistance (PT-100)
Power AC 220V , 15A,1Ф, 50HZ


Optional Accessories:
1. Control Panel : Key panel / LCD panel (optional)
2. Working way: steam heating type / air heating type (optional)
3. Salt concentration meter
4. Air compressor
