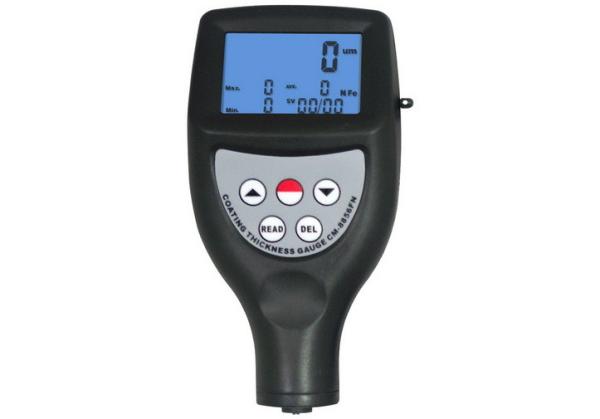

Integrated Built in Probe Non Destructive Testing Equipment for Single-hand Thickness Gauge with USB Connection
Integrated Built in Probe Non Destructive Testing Equipment for Single-hand Thickness Gauge with USB Connection
Specifications
Brand Name :
iqualitrol
Model Number :
CM-8855
Certification :
CE
Place of Origin :
DONGGUAN
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Carton Box
Principle :
F Magnetic Induction&NF Type Eddy Current
Range :
0~1250µm/0~50mil
Resolution :
0.1µm/1µm
Min.Radius Workpiece :
F Type:convex 1.5mm/concave 25mm /NF Type:convex 3mm/concave 50mm
Data Memory :
99 Groups
Energy Save :
Automatic Power Off
Description

Integrated Built in Probe for Single-hand Operation Coating Thickness Gauge with USB Connection

Summary:

A coating thickness gauge (also referred to as a paint meter) is used to measure dry film thickness.

Dry film thickness is probably the most critical measurement in the coatings industry because of its impact on the coating process, quality and cost.

Dry film thickness measurements can be used to evaluate a coating’s expected life, the product’s appearance and performance, and ensure compliance with a host of International Standards.

Features:

* Can store the new data in 99 groups.

* Two measuring methods: magnetic induction (F) and eddy current (N)

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.

Principle:

Principles Applications Examples
F Type
Magnetic Induction
(Iron Base)		 Measure the thickness of non-magnetic materials on magnetic materials Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
NF Type
Eddy Current
(Aluminium Base)		 Measure the thickness of non-conductive coatings on non-magnetic metals Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc

Specifications:

Principle F Magnetic Induction&NF Type Eddy Current
Range 0~1250µm/0~50mil
Resolution 0.1µm/1µm
Accuracy ±1~3%nor±2.5µm
Min.Radius Workpiece

F Type:convex 1.5mm/concave 25mm

NF Type:convex 3mm/concave 50mm
Min.Measuring Area 6mm
Min.Sample Thickness 0.3mm
Data Memory 99 Groups
Metric/Imperial √
Battery Indicator √
Automatic Power Off √
Operating Conditions Tempersture 0~40ºC
Humidity 10~90%RH
Power Supply 2x1.5V AAA(UM-4)Battery
Dimensions 126x65x35mm
Weight(Not Including Batteries) 81g
