Rapid Non Destructive Testing Equipment Paint Gloss Meter Measurement 20° / 60°
Rapid Non Destructive Testing Equipment Paint Gloss Meter Measurement 20° / 60°
Specifications
Brand Name :
iqualitrol
Model Number :
GM-26
Certification :
CE
Place of Origin :
DONGGUAN
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
10 work days
Packaging Details :
Carton box
Data Memorized :
254 Groups
Operating Conditions :
Temp:0~40ºC Humidity:<85%RH
Power Supply :
3.7V Lithium Ion Rechargeable Battery
Dimensions :
140x45x75mm
Accuracy :
±1.0GU
Range :
0.1~200 Gloss Units
Description

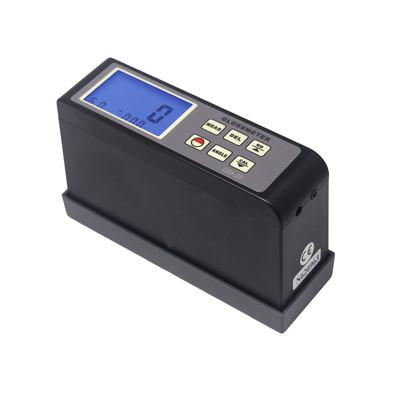

Rapid Measurement 20°/60° Gloss Meter GM-26 for Quality Control of Paint and Ink

Applications:

Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement

Features:

* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.

* Accurate measurement, good repetitveness.

* Small in size, easy to carry.

* Auto calibration.

* Intelligent design, rapid measurement.

* Able to store 254 groups of measurements.

* Built-in lithium ion rechargeable battery.

* Backlight display, suitable for low light environment.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Material And Angle Selection Recommended:

* 20°: High gloss paint, printing ink, plastics, paper and other materials.

* 60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.

* 85°: Low gloss paint, camouflage coatings materials.

Specifications:

Display 4 Digits Backlit LCD
Measuring Angle 20º/60º
Range 0.1~200 Gloss Units
Gloss Units GU
Accuracy ±1.0GU
Resoltuion 0.1
Repeatability ±0.5GU
Measuring Area 7x14mm(Ellipse)
Data Memorized 254 Groups
Operating Conditions Temp:0~40ºC Humidity:<85%RH
Power Supply 3.7V Lithium Ion Rechargeable Battery
Dimensions 140x45x75mm
Weight 305g(Including Batteries)
Stabdard Accessories Main Unit
Holder with Calibration Standard
AC Adapter
Optical Cleaning Cloth
Carrying Case
Operation Manual
