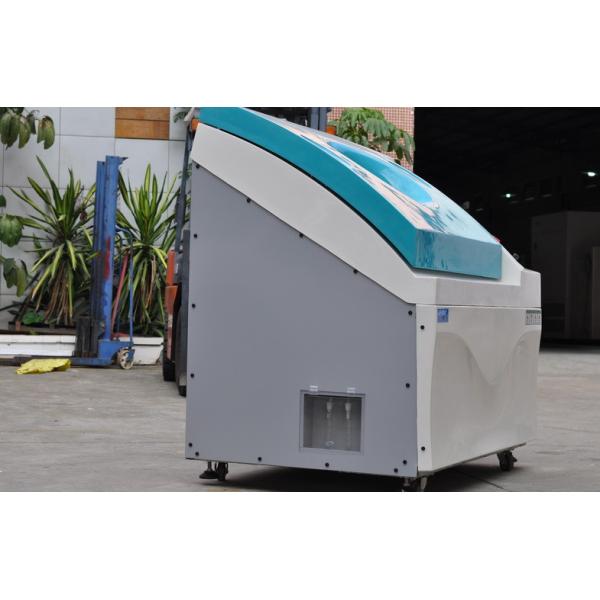

Accelerated Programmable Salt Spray Machine , Cyclic Corrosion Temperature Test Chamber
Accelerated Programmable Salt Spray Machine , Cyclic Corrosion Temperature Test Chamber
Accelerated Programmable Salt Spray Machine , Cyclic Corrosion Temperature Test Chamber
Accelerated Programmable Salt Spray Machine , Cyclic Corrosion Temperature Test Chamber
Accelerated Programmable Salt Spray Machine , Cyclic Corrosion Temperature Test Chamber
Accelerated Programmable Salt Spray Machine , Cyclic Corrosion Temperature Test Chamber
Specifications
Brand Name :
iqualitrol
Model Number :
QST-420-CCT
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
5 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Box
Chamber Material :
Glass Fiber Reinforced Plastics
Nozzle :
Precision Glass Nozzle
Panel :
Touch Controller
Internal Size :
2100 x 900 x 800mm
Spray Volume :
1~2mL/80cm²1 Hour
Defogging :
Air Enforcing and Drain Out
Description

ASTM B117 Accelerated Programmable Cyclic Corrosion Salt Aging CCT Test Chamber

Brief Introduction:

Cyclic corrosion testing simulates the closet actual natural environment, such as salt spray, drying, humidity and temperature alternating. The testing is strict than natural environment, and can be programmed or tested individually.

It is widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.

Cyclic Corrosion Testing (CCT) has evolved in recent years, largely within the automotive industry, as a way of accelerating real-world corrosion failures, under laboratory controlled conditions. As the name implies, the test comprises different climates which are cycled automatically so the samples under test undergo the same sort of changing environment that would be encountered in the natural world.

Consequently, cyclic tests usually give better correlation to outdoors than conventional salt spray tests. They are effective for evaluating a variety of corrosion mechanisms, including general, galvanic and crevice corrosion.

Cyclic corrosion testing is intended to be a more realistic way to perform salt spray tests than traditional, steady-state exposures. Because actual atmospheric exposures usually include both wet and dry conditions, it makes sense to pattern accelerated laboratory tests after these natural cyclic conditions. Research indicates that, with cyclic corrosion tests, the relative corrosion rates, structure and morphology are more similar to those seen outdoors.

Technical Specification:

Name Salt Spray and Cyclic Corrosion Test Chamber
Internal Dimension 1000x700x600(WxDxH)mm
Outer Dimension 1560*1000*1580(W*D*H)mm
Power supply AC 220V/50HZ/20A
Materials
Test Chamber glass fiber reinforced plastics, thickness: 5mm
Cover glass fiber reinforced plastics, with viewing window,
auto lifting system to control cover
Solution Tank With water level, PVC board, thickness: 5mm
Chamber Frame Glass fiber, adjustable test angle
Saturation barrel Saturation barrel
Temperature Available for CNS, JIS, ASTM, according to specific application
Salt Spray Test 1.Test Chamber: 35℃±1℃
2.Saturation Barrel: 47℃±1℃
Copper-accelerated acetic acid-salt spray test 1.Test Chamber: 50℃±1℃
2.Saturation Barrel: 63℃±1℃
Test standard CNS, JIS, ASTM
Spray Mode
Tapered disperser Adjustable Spray volume, and make spray even
Nozzle Precision Glass nozzle
Spray Volume 1~2mL/80cm²1hr
Defogging Mode Air enforcing and drain out
Control System

Chamber Temperature/

Saturation barrel

 Touch screen controller; temperature resolution 0.1℃,
from 0-99.90.1℃; PID auto tuning
Heating Slot Safe Temperature 0~99℃
First grade Pressure Structure Adjustment 1.1st grade pressure regulating valve, pressure range 2-2.5kg/cm²
2.2nd grade pressure regulating valve, pressure 0-4.0kg/cm² adjustable;
spraying pressure adjust to 1.0Kg/cm²
3, pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm²
