Specifications
Brand Name :
iqualitrol
Model Number :
iMet-224BD
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Carton Box
Eyepiece :
Wide Field WF10X ( Φ22mm)
Objective :
Bright and Dark Field 5X, 10X, 20X, 50X
Focus :
Coaxial Coarse/Fine Focus, Tension Adjustable
Stage :
Stage Overall Size: 242mmX200mm
Optical System :
Universal infinity system (UIS) optical system.
Application :
metallographic structure and surface morphology
Description

UIS Optical System Inverted Digital Metallurgical Microscope with Bright and Dark Field

Brief Introduction:

iMet-224 Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation.

Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space.

iMet-224 is an ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

Technical Specification:

Eyepiece Wide field WF10X(field number:Φ22mm)
Objective

iMet-224

Equipped with bright field objectives

PL L10X/0.25 (Work distance):5 mm
PL L20X/0.40 (Work distance):8.80 mm
PL L50X/0.70 (Work distance):3.68 mm
PL L100X/0.85(Dry) (Work distance):0.40 mm

iMet-224BD

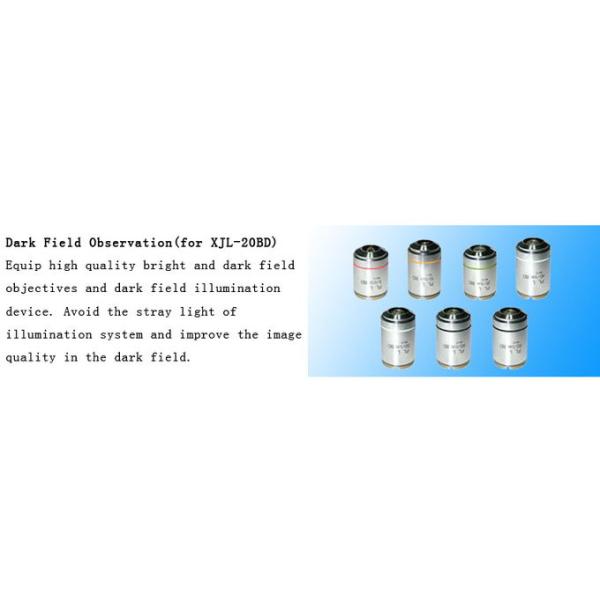

Equipped with bright & dark field objectives

PL L5X/0.12 BD (Work distance):8.05mm
PL L10X/0.25 BD (Work distance):7.86 mm
PL L20X/0.40 BD (Work distance):7.23mm
PL L50X/0.70 BD (Work distance):2.50mm
Eyepiece tube Inclination angle is 45˚ and interpupillary distance is 53~75mm.
Focus system Coaxial coarse/fine focus, with tension adjustable, minimum division of fine focusing is 2μm.
Nosepiece Quintuple (Backward ball bearing inner locating)
Stage Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm.
Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф20mm.
Illumination system 6V30W halogen and brightness enable control., use in XJL-20
12V50W halogen and brightness enable control., use in XJL-20BD
Integrated field diaphragm , aperture diaphragm and puller type polarizer.
Equipped with frosted glass and yellow ,green and blue filters

UIS Optical Digital Metallurgical Industrial Microscope Inverted Light Microscope

UIS Optical Digital Metallurgical Industrial Microscope Inverted Light Microscope

UIS Optical Digital Metallurgical Industrial Microscope Inverted Light Microscope

UIS Optical Digital Metallurgical Industrial Microscope Inverted Light Microscope

UIS Optical Digital Metallurgical Industrial Microscope Inverted Light Microscope

UIS Optical Digital Metallurgical Industrial Microscope Inverted Light Microscope

Optional Accessories:

Name Sort/Technique parameter NO.
Eyepiece Dividing eyepiece(Φ22mm) 1122010
Objective PL L5X/0.12 (Work distance):26.1 mm Equipped with bright field objectives 2260105
PL L40X/0.60 (Work distance):3.98 mm 2260140
PL L60X/0.70 (Work distance):3.18mm 2260360
PL L80X/0.80 (Work distance):1.28 mm 2260180
PL L40X/0.60 BD (Work distance):3.00 mm Equipped with bright & dark field objectives 2120140
PL L60X/0.7 BD (Work distance):1.65mm 2120160
PL L80X/0.80 BD (Work distance):0.80mm 2120180
PL L100X/0.85 BD (Work distance):0.4 mm 2120111

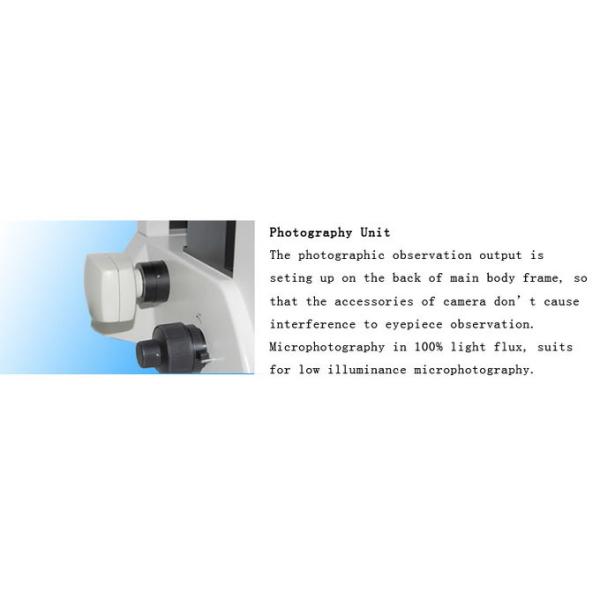

CCD Adapter 0.5X 812004
1X 812002
0.5X with dividing 0.1mm/Div 812003
Camera DV-1 Video output 380/520 TV line USB output 0.42 M pixel 800001
DV-2 With USB output 1.3M,2.0M,3.0M pixel 800003
DV-3 With video output 380/520 TV line 800005
Digital camera adapter CANON(EF) NIKON( F) 820001
