Trinocular Digital Metallurgical Industrial Microscope For Scientific Research / Colleges
Trinocular Digital Metallurgical Industrial Microscope For Scientific Research / Colleges
Specifications
Brand Name :
iqualitrol
Model Number :
iMet-223AT
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Box
Eyepiece :
Wide Field WF10X (Φ18mm)
Objective :
10X, 20X, 40X, 100X
Eyepiece Tube :
Trinocular, Inclination of 30˚
Illumination :
6V/20W Halogen Lamp
Application :
Scientific Research, colleges and factory
Stage :
Double layer mechanical stage
Description

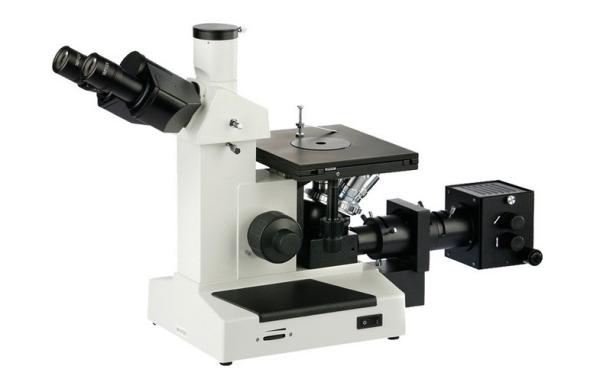

Trinocular Inverted Digital Metallurgical Microscope with Wide Field Eyepiece 10X

Brief Introduction:

iMet-223 series metallurgical microscopes are used for identification and analysis of the structures in different metals and alloys. They are the important instruments for researching metallography in metal physics.

The instruments can select special photography device to take euploid pictures of atlas metallograph. The instruments are suitable for scientific research,colleges and factory .

Features:

1, With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.

2, Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.

3, 6V 20W halogen lamp, brightness control.

4, Trinocular is compensation, can switch to observe normally or to observe the Polarize, can send 100% of light to top photography port.

Inverted metallurgical microscopes allow observation of opaque objects that are too large to place under an upright metallurgical microscope. Metallurgical microscope samples are placed on an inverted metallurgical microscope and allow for inspection of grain size and the state of the metals.

Inverted metallurgical microscopes are used in the engineering and manufacturing processes to look for metal fatigue, corrosion, fractures and ruptures that resulted from stress, cracks and hydrogen embrittlement.

Technical Specifications:

Model iMet-223AT iMet-223BT
Eyepiece Wide field WF10X(Φ18mm)
Objective Plan achromatic objectives with long working distance (no cover glass) PL 10X/0.25 Achromatic objectives(no cover glass) 10X/0.25
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 Achromatic objectives(no cover glass) 20X/0.40
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 Achromatic objectives(no cover glass) SP 40X/0.65
Plan achromatic objectives with long working distance (no cover glass) PL 100X/1.25(Spring, oil) Achromatic objectives(no cover glass) 100X/1.25(Spring, oil)
Eyepieces tube Trinocular, Inclination of 30˚
Filter Frosted filter
Blue filter
Green filter
Yellow filter
Focus system Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
Nosepiece Quadruple(Ball bearing inner locating)
Stage Double layer mechanical (Size:180mmX150mm,moving range:15mmX15mm)
Illumination unit 6V 20W halogen lamp, brightness control.

Trinocular Digital Metallurgical Industrial Microscope For Scientific Research / Colleges

Trinocular Digital Metallurgical Industrial Microscope For Scientific Research / Colleges

Trinocular Digital Metallurgical Industrial Microscope For Scientific Research / Colleges

Trinocular Digital Metallurgical Industrial Microscope For Scientific Research / Colleges

Trinocular Digital Metallurgical Industrial Microscope For Scientific Research / Colleges

Optional Accessories:

Name Sort/Technique parameter NO.
Eyepiece Wide field WF16X(Φ11mm) 1051016
Dividing 10X(Φ18mm) 0.1mm/Div 1021010
Objective Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 1051016
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75(Spring) 2250160
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) 2250111
Achromatic objectives(no cover glass) 60X/0.85 2220160
Eyepieces tub Binocular, Inclination of 30˚ 011008
Nosepiece Quintuple(Ball bearing inner locating) 032001
Simple polarizing unit Polariser 111002
Polarization analyzer 111102
CCD adapter 0.4X 812001
0.5X 812004
1X 812002
0.5X with dividing 0.1mm/Div 812003
Camera DV-1 With USB & video output 800001
DV-2 With USB output 800003
DV-3 With video output 800005
Photo unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece 840001
4X Focusing photograph attachment 840002
MD Adapter 840003
PK Adapter 840004
Digital camera adapter CANON(A610,A620,A630,A640) 821001
