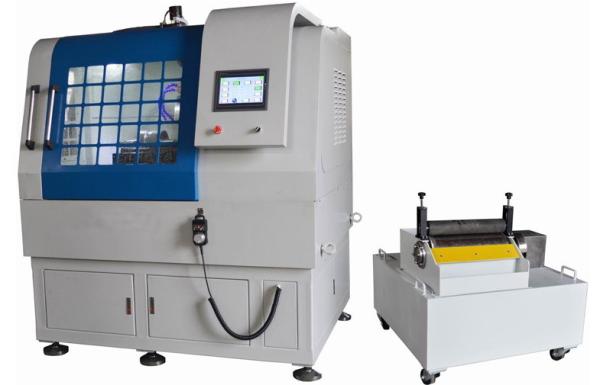

Lab Metallographic Cutting Machine Sample Cutting Machine
Max Cut Section 300x150 mm

Brief Introduction:

The machine is a PLC controlled automatic metallographic sample cutting machine, X/Y/Z directions controlled automatically and precisely, intelligent cutting, the amount of feed can change depending on the material’s hardness, to achieve the fastest cutting effect. Cutting speed frequency conversion control, has very high reliability and control ability.

Main Features:

• Manual/Automatic Cutting mode exchangeable
• Touch screen displays various cutting data.
• Precise positioning.
• Swing cutting and continuous cutting two cutting ways, according to the material’s hardness, it can change the cutting speed, to achieve the fast cutting effect.


In order to facilitate cutting room cleaning and security of the spindle motor, the machine adopts electro-mechanical dissociation.

There is a large observation window on the cutting room security cover, makes the user easy to observe the entire process of cutting samples.

Installed LED lights in the cutting room, it achieves effective lighting for the entire area of the cutting room.

Cutting indoor ventilation fan can ensure the efficient flow discharge of various steam and smoke caused by the cutting and increases the indoor brightness and clarity.

The design is more humane and adopts the principle of ergonomics. The most important feature: Low noise, easy to operate, beautiful appearance, safety use. It is one of the best equipment for laboratory sample preparation.

The body form: vertical. Mainly composed of upper (safety cover), middle (frame), right sliding door, side door, the lower frame (electrical box, tool box), fixture, rinsing tap, cooling water tank (independent).

It adopts frequency conversion motor, direct cutting disc, stepless speed regulation, concise design and solid structure. The direct driving provides the transmission between the motor and the cutting disc, and ensure the high efficiency, low noise, minimum maintenance and longer service life.

Design of special cutting for large workpieces, it makes the maintenance of machine parts and processing of large workpieces easier. Sliding door and hinged door makes you have more space and unlimited access, more convenient for you to place the large workpiece in the right position. You can put the workpiece into the cutting room from three directions (up, front and left).

The work area adopts fully enclosed structure and a transparent protective cover for the observation of cutting. Equipped with a cooling water tank for storing cooling liquid, do avoid using tap water as cooling liquid. After the cutting work is finished, use the left rinsing tap to rinse the indoor garbage and then close the safety door.

Technical Specifications:
