Specifications
Brand Name :
iqualitrol
Model Number :
iCut-404
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Cutting Section :
65 x 65mm
Rotation Speed :
2800rpm
Cutting Wheel :
250 x 1.5 x 32mm
Motor :
1.1kW, AC380V/50Hz/3Ph
Cooling :
Water Cooling
Application :
Cylinder and anomalistic shape samples
Description

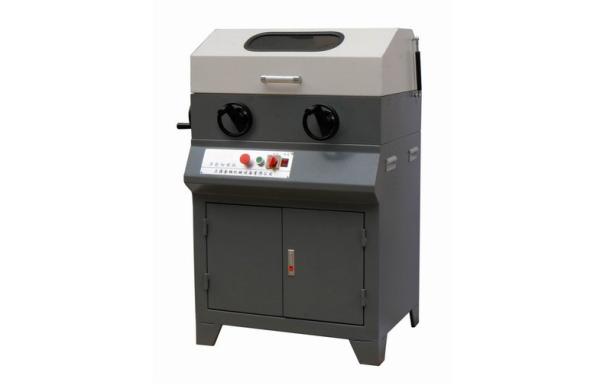

Multifunctional Metallographic Sample Preparation Equipment With Cut Section 65mm

Brief Introduction:
iCut-404 multi-functional cutting machine mainly used to cut cylinder and anomalistic shape samples, such as multi-angular shape, protruding board, etc. It adopts the all-sealing structure, which can guarantee the cutting sample under the conditions of absolute safety.

In order to avoid damage of sample metallographical structure during cutting, strong cooling system comes with the cutter, and can increase the cutting cross section, raising the availability of cutting emery wheel.

The cutter has the advantages of easy to operate, use, maintain, etc, which is an excellent equipment of cutting anomalistic shapes.

Technical Specifications:

Cutting Section 65 x 65mm
Rotation Speed 2800rpm
Cutting Wheel 250 x 1.5 x 32mm
Motor 1.1KW, AC380V/50Hz/3Ph
Dimension 870 x 590 x 1110mm
Net Weight 350Kg

Specimen Cutter:

When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.

One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.

Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
