Auto Turret Large LCD Digital Micro Vickers Hardness Testing Machine with Halogen Lamp
Auto Turret Large LCD Digital Micro Vickers Hardness Testing Machine with Halogen Lamp
Auto Turret Large LCD Digital Micro Vickers Hardness Testing Machine with Halogen Lamp
Auto Turret Large LCD Digital Micro Vickers Hardness Testing Machine with Halogen Lamp
Auto Turret Large LCD Digital Micro Vickers Hardness Testing Machine with Halogen Lamp
Auto Turret Large LCD Digital Micro Vickers Hardness Testing Machine with Halogen Lamp
Auto Turret Large LCD Digital Micro Vickers Hardness Testing Machine with Halogen Lamp
Auto Turret Large LCD Digital Micro Vickers Hardness Testing Machine with Halogen Lamp
Specifications
Brand Name :
iqualitrol
Model Number :
402MVDS-Y
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Box
Data Output :
Built-in Printer, RS232 Interface
Eyepiece :
Digital 10X Microscope
Test Mode :
HV, HK
XY Table :
Size: 100×100mm
Light Source :
Halogen Lamp
Dwell Time :
0 - 60s
Description

Auto Turret Large LCD Digital Micro Vickers Hardness Tester
with Hardness Conversion

Product Profile:

401MVD equips with digital measuring eyepiece, can automatically get the hardness value and shows on the large screen. It also can show the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time.

Test results can be saved for reviewing or be printed out by the built-in printer, and with RS232 interface for connecting to the computer.

Available to measure Knoop hardness by install optional Knoop indenter.

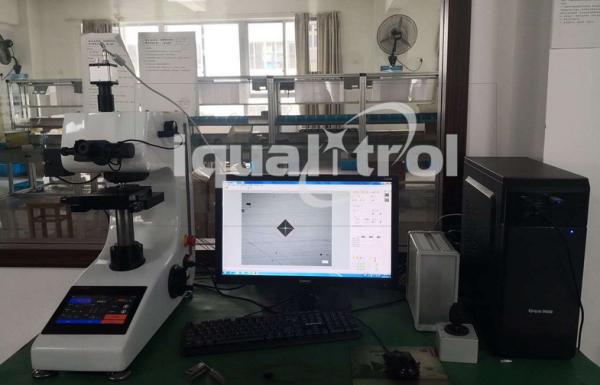

Support optional LCD video measuring device and CCD image automatic measuring system.

Application range:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Packing List:

Name Qty Name Qty
Instrument Main Body 1 set 10x Digital Eyepiece 1 pc
Diamond Vickers Indenter 1 pc 10x, 40x Objective each 1 pc
Weights 6 pcs Weight Axis 1 pc
Cross Test Table 1 pc Flat Clamping Test Table 1 pc
Thin Specimen Test Table 1 pc Filament Clamping Test Table 1 pc
Horizontal Regulating Screw 4 pcs Level 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V/15~20W 1 pc
Power Cable 1 pc Screw Driver 2 pcs
Hardness Block 400~500 HV0.2 1 pc Hardness Block 700~800 HV1 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy

Technical Specifications:

Model 401MVDS-Y 402MVDS-Y
Test Force gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf (optional 2000gf)
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N (optional 19.6N)
Test Range 1HV~2967HV
Test Mode HV/HK
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Manual Turret Automatic Turret
Conversion Scale HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG,
HRK, HR15N, HR30N, HR45N, HR15T, HR30T,
HR45T, HS, HB
Data Output Built-in Printer, RS232 Interface
Hardness Reading LCD Display, Data can be saved
Objective 10x (Observe), 40x (Measure)
Eyepiece 10x
Total Magnification 100x, 400x
Resolution 0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
X-Y Test Table

Size: 100×100mm; Travel: 25×25mm;

Resolution: 0.01mm
Max. Height of Specimen 85mm
Throat 100mm
Power Supply AC220V/50Hz/1Ph
Execute Standard ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension

480×325×545mm,

Packing Dimension: 600×360×800mm
Weight Net Weight: 40kg, Gross Weight: 50kg
