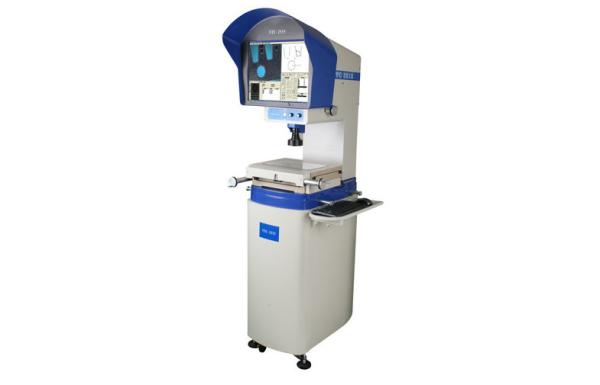

19 Touch Screen Vision Measuring Machine / QM2.0 Software Vertical Video Measuring Machine
19 Touch Screen Vision Measuring Machine / QM2.0 Software Vertical Video Measuring Machine
19 Touch Screen Vision Measuring Machine / QM2.0 Software Vertical Video Measuring Machine
19 Touch Screen Vision Measuring Machine / QM2.0 Software Vertical Video Measuring Machine
Specifications
Brand Name :
iqualitrol
Model Number :
VTC-2010
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Box
Accuracy :
≤3+L/200(um)
Video :
1/3” Color CCD Camera
Lens :
0.7～4.5x Detented Zoom Lens
Magnification :
30X～190X
Description

19" Touch Screen Vision Measuring Machine QM2.0 Software Vertical Video Measuring Machine

Brief Introduction:

The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;

With precisiontoothlessrod and fast movementlocking device,ensure return error is within2um;

High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200mm;

Key Features:

1, Solid framework, large LCD touch screen and advanced QM2.0 software;

2, High quality optics for crisp and clear images;

3, Adjustable LED surface and contour illumination;

4, High resolution industrial CCD camera;

5, 6.5X Detented zoom lens changeable within the range of 30-190x magnification

6, Extended function of printing,saving and exporting data;

7, Excel,word or txt multi-format report output,and DXF input and output;

8, Non-contact optical height measurement;

Technical Specifications:

Model VTC-2010 VTC-2515 VTC-3020
X/Y-axis Travel 200×100mm 250×150mm 300×200mm
Z-axis Travel 200mm
Accuracy ≤3+L/200(um)
Repeatability ±2um
Operation Mode Manual(with auto edge detection)
Video Device 1/3” color CCD camera, 0.7～4.5x Detented zoom lens
Screen Dimension 19” LCD touch screen monitor
Video Magnification 30X～190X(it can extend to 15X～380X)
Working Distance 92mm
Measuring Software Quick Measuring 2.0
Max.Load Capacity 10Kg
Suitable Environment Workshop and Metrology room
Power supply AC110V/60Hz,AC220V/50Hz
Dimension(D×W×H) 760×650×1760mm
Net Weight 150Kg

Standard Delivery:

Measuring Software Color CCD Camera Detented Zoom Lens
Calibration Block Capture Card Working Cupboard
19” LCD Touch Screen Built-in PC System Operation Manual
