Specifications
Brand Name :
iqualitrol
Model Number :
QVS-4030CNC
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
5 Sets per Month
Delivery Time :
30 Working Days
Packaging Details :
Plywood Box
Z Axis :
Travel 200mm
Accuracy :
X/Y-Axis: ≤3+L/200(um)
Vision :
1/2“ Color CCD Camera
Software :
QuickMeasuring 4.1/4.2
Zoom Lens :
6.5X Motorized Coaxial Zoom Lens
Motor :
Double Close-loop Servo Motor
Description

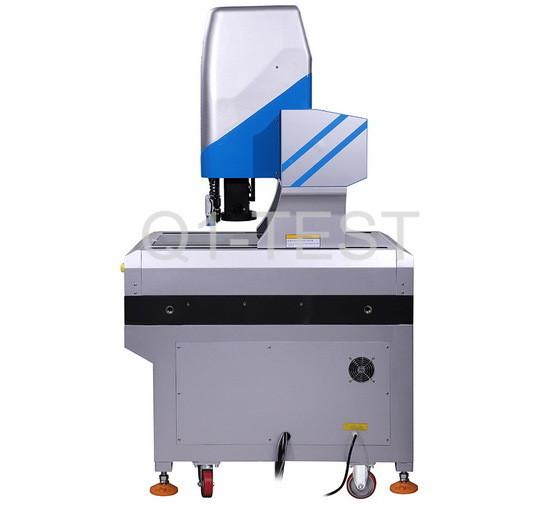

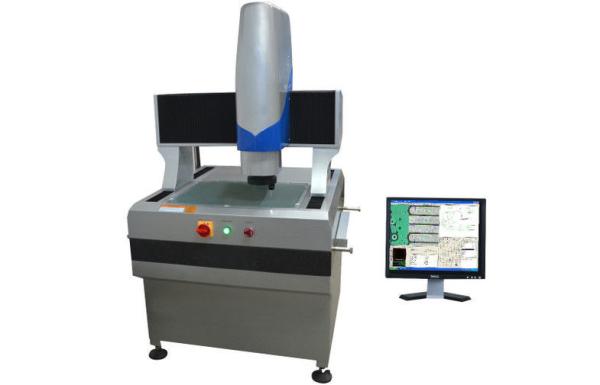

2.5D Fully Automatic CNC Vision Measuring Machine with CCD Navigation System


Features:

1, Precision guide and screw, double close-loop servo motor to ensure the high measure speed, accuracy and stability;

2, Adjustable 48-division Ring LED illumination controlled by software and with memory function;

3, Advanced 6.5X motorized coaxial zoom lens and 1/2” color high resolution CCD camera;

4, 3-axis high-accuracy GSI or Renishaw 0.5um linear scale;

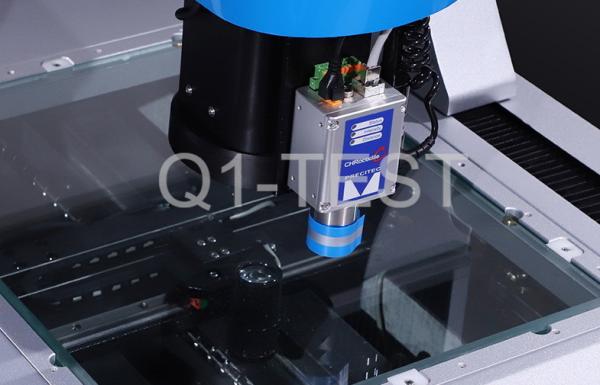

5, CCD navigation system, for quickly locate the measurement position of sample and improve the measurement speed;

6, Powerful fully-auto QM4.1 measuring software, edit/save/input the program and then auto running.

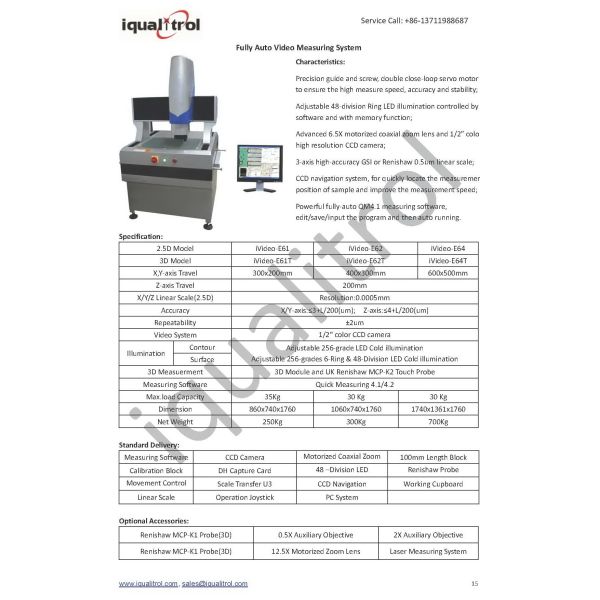

Technical Specifications:

2.5D Model QVS-3020CNC QVS-4030CNC QVS-5040CNC
3D Model QVS-3020CNCP QVS-4030CNCP QVS-5040CNCP
X,Y-axis Travel 300x200mm 400x300mm 500x400mm
Z-axis Travel 200mm
X/Y/Z Linear Scale(2.5D) Resolution:0.0005mm
Accuracy X/Y-axis:≤3+L/200(um); Z-axis:≤4+L/200(um)
Repeatability ±2um
Video System

1/2“ color CCD camera

6.5X Motorized coaxisl zoom lens
Illumination Contour Adjustable 256-grade LED Cold illumination
Adjustable 256-grades 6-Ring & 48-Division LED Cold illumination
Surface
3D Measuerment 3D Module and UK Renishaw MCP-K2 Touch Probe
Measuring Software Quick Measuring 4.1/4.2
Max.load Capacity 35Kg 30 Kg 25 Kg
Dimension 860x740x1760 1060x740x1760 1160x940x1760
Net Weight 250Kg 300Kg 360Kg

Standard Delivery:

Measuring Software CCD Camera Motorized Coaxial Zoom Lens 100mm Length Block
Calibration Block DH Capture Card 48 –Division LED Illumination Renishaw Probe MCP-K2(3D)
Movement Control Card Scale Transfer U3 CCD Navigation Working Cupboard
Linear Scale Operation Joystick PC System

Optional Accessories:

Renishaw MCP-K1 Probe(3D) 0.5X Auxiliary Objective 2X Auxiliary Objective
Renishaw MCP-K1 Probe(3D) 12.5X Motorized Zoom Lens Laser Measuring System
