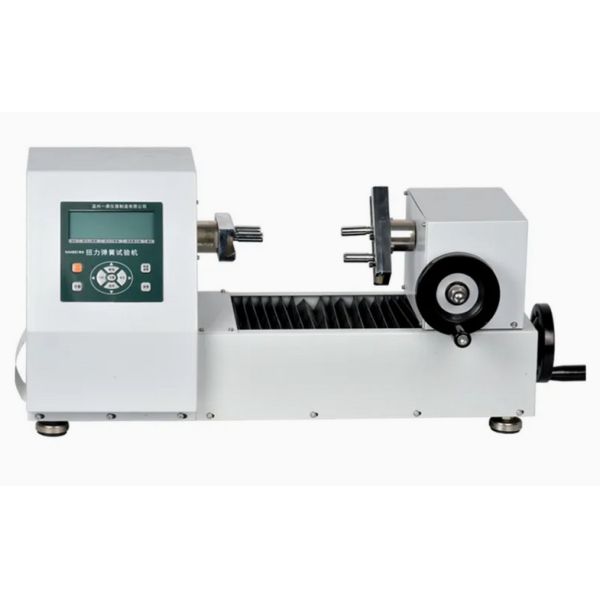

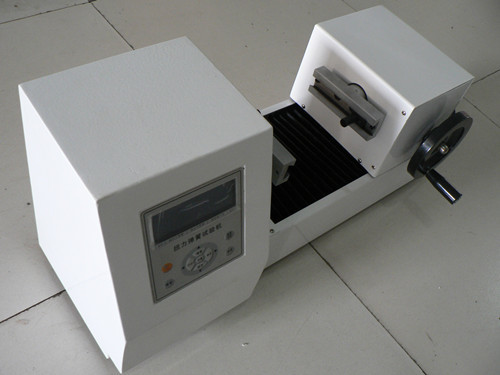

High Resolution ADT Horizontal Torsion Spring Testing Machine
High Resolution ADT Horizontal Torsion Spring Testing Machine
High Resolution ADT Horizontal Torsion Spring Testing Machine
High Resolution ADT Horizontal Torsion Spring Testing Machine
Specifications
Brand Name :
iqualitrol
Model Number :
ADT-1
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
10 Working Days
Packaging Details :
Carton Box
Resolution :
0.01mN.m, 0.0001N.m, 0.001N.M
Load Mode :
Manual control
Precision :
≦+/-1%
Application :
electric, light industry, machinery manufacturing
Description

High resolution ADT Horizontal Torsion SpringTester Quick sampling speed and large screen show

Brief Introduction:
ADT series horizontal torsion spring tester is a kind of intelligent multi-functional measuring instrument used for.testing and inspection of torsion spring.

With simple operation, high precision, easy to carry, complete functions, widely used in all kinds of electric, light industry, machinery manufacturing,research institutions, etc.

Function:

1. High precision, high resolution, quick sampling speed and large screen show;

2. Upper and lower limit can be set, with sound and light alarm device;

3. Three kinds of parameters show (Torque value, Rotating angle, Spring stiffness);

4. Three units can be switched (N·m, kgf·cm, Ib·in);

5. Peak holding,remove automatically function, remove free time setting;

6. Without operation automatic shutdown function, time can be set free;

7. Using the USB interface and PC communications, synchronous test function can be connect to computer test.

Technical Specifications:

Type ADT-0.5 ADT-1 ADT-2 ADT-5 ADT-10 ADT-20 ADT-30 ADT-50
Measuring range 0.5N.m 1N.m 2N.m 5N.m 10N.m 20N.M 30N.M 50N.M
Division value 0.01mN.m 0.0001N.m 0.001N.M
Measuring angle range 0~9999.9
Angular resolution 0.1
Precision ≦±1%
Measured Spring Height 150mm
Torque Plate Diameter Ø100mm
Load mode Manual control
Specimen method Spindle configuration
Power source AC220V,50HZ
Packing Size 710*320*290mm
weight About 37.5Kg
