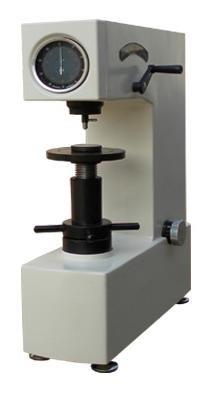

Bench Top Manual Rockwell Hardness Test Machine with Dial Gauge 0.5HR
Bench Top Manual Rockwell Hardness Test Machine with Dial Gauge 0.5HR
Specifications
Brand Name :
iqualitrol
Model Number :
HR-150
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
50 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Application :
ferrous and non-ferrous metals
Load Control :
Manually, buffering by oil pump
Standards :
GB/T230.1, GB/T230.2, JJG112
Height :
Max Space 190mm
Horizontal :
Max Space 160mm
Resolution :
Dial Gauge 0.5HR
Description

Easy Operation Bench Top Manual Rockwell Hardness Tester with Dial Gauge 0.5HR

Brief Introduction:

HR-150 is an effective manual Rockwell testing machine with high accuracy, reliability and durability, it is applied at the workshops and measurement departments for determining the Rockwell hardness of the ferrous and non-ferrous metals.

Main Features:

Analogue gauge resolution is 0.5HR, improves the reading accuracy than traditional 1HR resolution;

Force knob adopts the metal material to replace the plastic, it largely improves the instrument using-life;

Loading, dwell and unloading is buffering by oil pump, it eliminates the operator' s tiredness.

Manual testing process, no need for electric controlling .

It’s steady and reliable for testing of curved surface.

Precision conforms to the Standards of GB/T 230.2, ISO 6508.

Technical Specifications:

Model HR-150
Initial Force 10kgf(98.07N)
Total Force 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Scales HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK
Hardness Range HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100
Hardness Reading Dial Gauge 0.5HR
Standards GB/T230.1, GB/T230.2, JJG112
Specimen Height 190mm
Throat 160mm
Dimension 520*240*700mm
Weight 55Kg

Standard Delivery:

Instrument main body Ø1.588mm ball indenterl Weight A
Ø58mm V-shape anvil Ø1.588mm Steel ball Weight B
Hardness block Cone diamond indenter Weight C
Anti-dust cover Ø150mm Flat anvil Accessory box
Warranty card Qualified certificate Instrument manual
