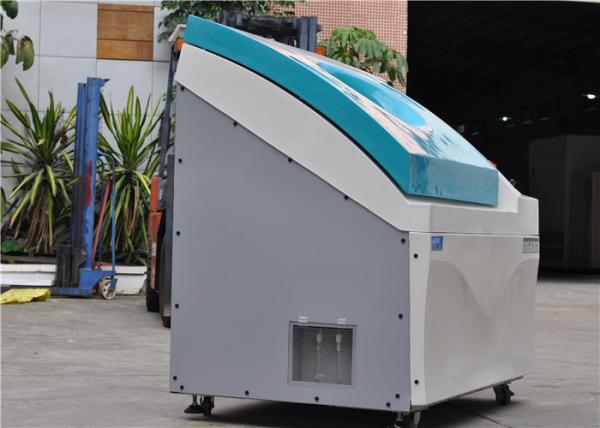

CCT Salt Spray Cyclic Corrosion Test Chamber 500L FRP Shell Material
CCT Salt Spray Cyclic Corrosion Test Chamber 500L FRP Shell Material
CCT Salt Spray Cyclic Corrosion Test Chamber 500L FRP Shell Material
CCT Salt Spray Cyclic Corrosion Test Chamber 500L FRP Shell Material
Specifications
Brand Name :
iqualitrol
Model Number :
QST-500-CCT
MOQ :
1 Set
Supply Ability :
10 Sets per Month
Delivery Time :
25 Working Days
Packaging Details :
Plywood Box
Payment Terms :
T/T
Material :
FRP / GRP
Inner size :
1000*700*600mm
Salt fog settlement :
1～2mL/80cm2·h
Drying temperature :
10～50℃±2℃
Description

CCT Complex Salt Spray Test Chamber

Brief Introduction:
Cyclic corrosion testing simulates the closet actual natural environment,such as salt spray drying,humidity and temperature alternating. The testing is strict than natural environment and can be programmed or tested individually.

There is national testing standard for salt spray test,with acetic add salt spray corrosion test, Copper-accelerated acetic acid-salt spray test,and Cyclic corrosion test.QST-420-CCT apply glass fiber reinforced plastic and touch screen auto running,it can run all the environment test in one chamber,conform relevant international standards.

It is widely used to test corrosion resistance of automotive,paint,surface coating,chemical,aerospace,electronic,car industry,offshore and defense industries.

Technical Specification:

Name Salt spray and Corrosion Cycling Test Chamber
Model QST-420-CCT QST-1000-CCT QST-1500-CCT
Internal dimensions (mm) 1000*700*600 1600*900*700 2100*900*800
Overall dimensions (mm) 1560*1000*1350 2160*1200*1450 2711*1150*1570
Temperature range +15~+60ºC
Humidity range 45%~98%RH
Temperature tolerance ±2ºC
Humidity tolerance +2~-3%RH
Temperature Uniformity <=2. 0ºC
Temperature Fluctuation ±0.5ºC
Temperature Resolution ≥0.5ºC
Spray deposition 1~2mL/80cm2 ·hr(adjustable)
Test Time 0-999.9h/m/s ( adjustable)
Solution Tank ≥100L
Load of Interior ≥50KG
Power AC1Ф220V 20A 50HZ
Materials
Test Chamber glass fiber reinforced plastics, thickness:5mm
Cover glass fiber reinforced plastics with viewing window, auto lifting system to control cover
Solution Tank With water level, PVC board, thickness: 5mm
Chamber Frame Glass fiber,adjustable test angle
Saturation barrel Saturation barrel
Temperature Available for CNS; JIS, ASTM,according to specific application
Salt Spray Test 1.Test Chamber:35ºC±1ºC
2.Saturation Barrel:47ºC±1ºC
Copper-accelerated acetic acid-salt spray test 1.Test Chamber:50ºC±1ºC
2.Saturation Barrel:63ºC±1ºC
Test standard CNS,JIS,ASTM
Spray Mode
Tapered disperser Adjustable Spray volume, and make spray even
nozzle Precision Glass nozzle
Defogging Mode Air enforcing and drain out
Control System
Chamber Temperature,
Saturation barrel		 Touch screen controller; temperature resolution 0.1ºC; from 0-99.9ºC;PID auto tuning
Heating Slot Safe Temperature 0~99ºC
First grade Pressure Structure Adjustment

1.1st grade pressure regulating valve,

pressure range 2-2,5kg/cm²
2.2nd grade pressure regulating valve, pressure 0-4.0kg/cm² adjustable; spraying pressure adjust to 1.0Kg/cm²
3.pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm²

Product tags

cyclic corrosion test chamber

,

salt spray corrosion test chamber

,

corrosion test chamber
