Low Noise and Stability Benchtop Electric Pencil Hardness Tester Moving Speed 5mm/s
Low Noise and Stability Benchtop Electric Pencil Hardness Tester Moving Speed 5mm/s
Low Noise and Stability Benchtop Electric Pencil Hardness Tester Moving Speed 5mm/s
Low Noise and Stability Benchtop Electric Pencil Hardness Tester Moving Speed 5mm/s
Low Noise and Stability Benchtop Electric Pencil Hardness Tester Moving Speed 5mm/s
Low Noise and Stability Benchtop Electric Pencil Hardness Tester Moving Speed 5mm/s
Specifications
Brand Name :
iqualitrol
Model Number :
iRY-17
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Delivery Time :
5 Working Days
Packaging Details :
Plywood Box
Test angle :
45 degrees
Load :
Adjustable, 500g 250g 250g
Test Speed :
5mm/sec, adjustable
Travel distance :
40mm
Platform Size :
12x17cm
Accessories :
Pencil 6B~6H, 13 weights
Description

Low Noise and Stability Benchtop Electric Pencil Hardness Tester Moving Speed 5mm/s

Model: iRY-17

Brief Introduction:

Electric pencil hard testing machine is used for testing the hardness of finished products, such as mobile phone shell, MP3/MP4 shell, notebook computer shell, etc. The machine is an electric (semi-automatic) control.

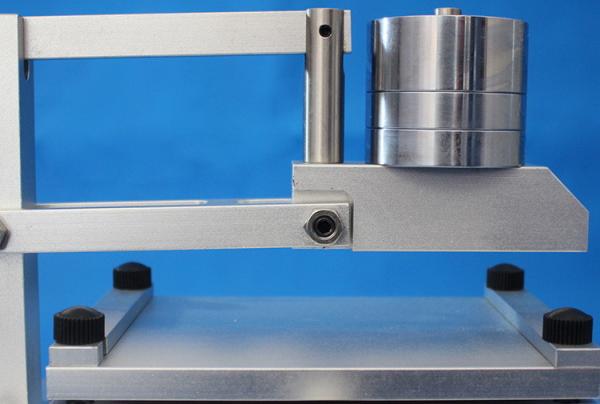

The machine moves through a stepper motor to achieve forward and backward movements with low noise and stability! Test stroke adjustable according to specific requirements!

Technical Specifications:

Test angle 45 degrees
Load Adjustable, 500g 250g 250g
Test platform moving speed 5mm/sec, adjustable
Travel distance 40mm
Platform approx. 12x17cm, fixable sample
Power supply AC220V/50Hz
Attachment Standard pencil 6B~6H, total 13 weights

Pencil Hardness Tester Description:

The surface hardness of the coating film layer is measured by hardness pencil scraping, and the hardness pencil is fixed at an angle of 45°, so that the front end pen core is in contact with the surface of the coating layer, and a proper load is applied at a certain speed (JIS specification 0.5mm/sec).

The mobile test platform moves the surface of the coating layer over the pen and the softest pencil grade, which does not cause damage (scratches), can be considered as the hardness of the coating layer.
