Specifications
Brand Name :
iqualitrol
Model Number :
XHRS-150A
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Sets/Month
Delivery Time :
5 Working Days
Packaging Details :
Plywood Case
Application :
nylon, polycarbonate, polystyrene, acetal
Loading :
60kgf(588N), 100kgf(980N), 150kgf(1471N)
Data Output :
Built-in Printer, RS232
Dwell Time :
1 - 60 Seconds
Specimen :
max Height 170mm
Horizontal :
135mm
Description

Hardness Conversion Digital Rockwell Hardness Tester of Plastics Conform ASTM D785

Model: XHRS-150A

Brief Introduction:

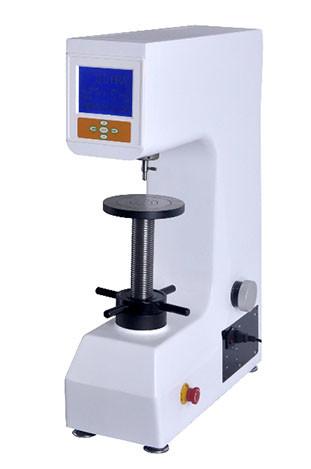

XHRS-150A Digital Plastic Rockwell Hardness Tester has novel appearance interface menu, can test plastic and metal, measuring device adopts grating sensor and computer control, hardness indication directly displays on the LCD screen is the mechanical and electrical integration hardness testing machine.

The hardness testing of plastics is most often measured by the Rockwell hardness test or Shore (durometer) hardness test. Both methods measure the resistance of the plastic toward indentation, thereby providing an empirical hardness value.

These hardness values do not necessarily correlate to other properties or fundamental characteristics.

Rockwell hardness is generally chosen for 'harder' plastics such as nylon, polycarbonate, polystyrene, and acetal where the resiliency or creep of the polymer is less likely to affect the results.

The Ball Indentation Hardness test (ISO 2039-1; DIN 53456) is used in Europe much more often than in North America. The Barcol hardness test is sometimes chosen for thermoset polymers.

ASTM D785-08(2015) Standard Test Method for Rockwell Hardness of Plastics and Electrical Insulating Materials.

Technical Specifications:

Initial test force 10kgf(98.07N) Allowable error±2.0%
Total test force (N) 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rocker Scales HRE, HRM, HRL, HRR, HRF, HRG, HRH, HRK,
HRC, HRB, HRA, HRD
Inspection standards ASTM D785
Accuracy 0.1HR
Dwell time (s) 1-60
Hardness readings LCD
Maximum height of test piece (mm) 170
Indenter - outside wall distance (mm) 135
Dimensions (mm) 520×240×720
power supply 220V/50HZ
Instrument weight (kg) 70
Hardness test range HRA:20-88; HRB:20-100; HRC:20-70; HRD:40-77; HRE:70-94; HRF:60-100; HRG:30-94;
HRH:80-100; HRK:40-100; HRL:100-120;
HRM:85-110; HRR:114-125

Main Functions and Features:

1. Directly display the test hardness value through the large LCD screen;

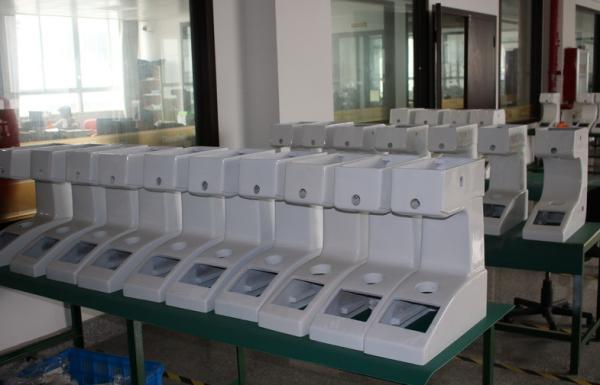

2. The shell is made by a special sandblasting process with a one-step casting process. The structure is stable without deformation and can work in a relatively harsh environment. The car has a high-grade paint and a strong anti-scratch ability. It is still bright as a new product for many years.

Packing List:

NO. Name (specification) Quantity
1 Diamond Rock Head 1
2 Diameter 1.5875mm ball Head 1
3 Diameter 3.175mm ball Head 1
4 Diameter 6.35mm ball Head 1
5 Diameter 12.7mm ball Head 1
6 Large, Medium and V Test Benches 3
7 Standard Rockwell hardness block
8 HRB 1
9

High HRC

Low HRC

 1
10 Standard plastic Rockwell hardness block
11 HRE, HRL ,HRM, HRR 1
12 fuse 2A 2
13 power cable 1
14 RS-232 Communication line 1
15 Weights A,B,C 3
16 Dust-proof plastic cover 1
17 Product certificate 1
18 Printer paper, printer manual 1
19 Product instruction manual 1
