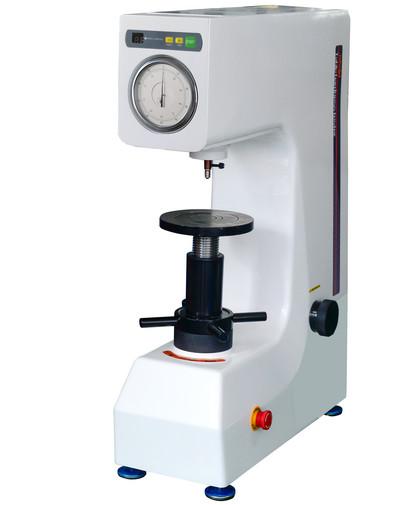

Electric Loading Plastic Rockwell hardness tester with Dial Reading Resolution 0.5HR
Electric Loading Plastic Rockwell hardness tester with Dial Reading Resolution 0.5HR
Specifications
Brand Name :
iqualitrol
Model Number :
XHR-150DT
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
Rockwell scales :
HRE, HRF, HRG, HRH, HRK
Application :
Non-metallic Plastics, Hard Rubber, Synthetic Resins
Throat Depth :
135mm
Height :
Specimen Height 170mm
Reading :
Dial Reading 0.5HR
Loading :
Motorized Loading
Description

Electric Loading Plastic Rockwell hardness tester with Dial
Reading Resolution 0.5HR

Model: XHR-150DT

Product Description:

The iqualitrol XHR-150DT electric plastic Rockwell hardness tester adopts an automatic loading and unloading test force mechanism, the operation is simple and rapid, and there is no human operation error except for the dial to zero, which has high sensitivity and stability; Suitable for workshops and laboratories. It has been widely used in all walks of life.

Main features:

1. The hardness value is directly read through the dial gauge, the dial gauge is sensitive, and the measured result is higher than the national standard;

2. The shell is formed by a special sand-casting process. The structure is stable and not deformed, and it can work under harsh environment. The car paint has high grade and strong scratch resistance. It is still bright and new for many years.

Main use and scope of application:

Non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals in laboratories and workshops;

Technical Specifications:

Model XHR-150DT
Initial test force 10kgf (98.07N)
Total test force (N) 60kgf (588N), 100kgf (980N), 150kgf (1471N)
Rocker Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
Hardness test range HRD: 40-77; HRE: 70-94; HRF: 60-100; HRG: 30-94; HRH: 80-100; HRK: 40-100; HRL: 100-120; HRM: 85-110; HRR: 114-125
Data output Dial reading
Inspection standards GB/T230.1 GB/T230.2 Chinese Standard JJG112 Inspection Rule
Maximum height of specimen 170mm
Throat depth 135mm
power supply AC220V+5%,50~60Hz
Dimensions 520*240*700mm
weight About 70Kg
