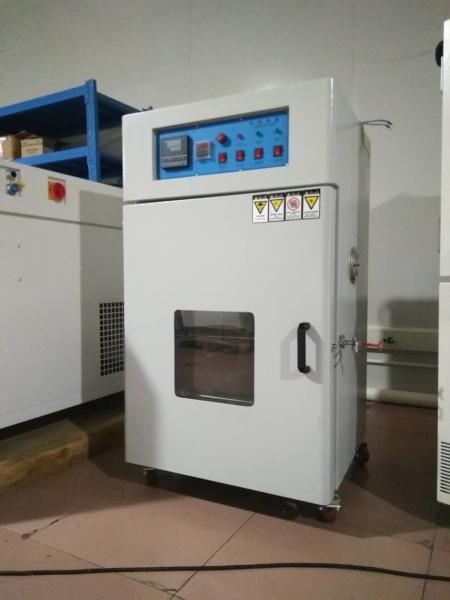

SGS Hot Air Blast Drying Oven With White Color In Mirror Stainless Steel #304
SGS Hot Air Blast Drying Oven With White Color In Mirror Stainless Steel #304
SGS Hot Air Blast Drying Oven With White Color In Mirror Stainless Steel #304
SGS Hot Air Blast Drying Oven With White Color In Mirror Stainless Steel #304
Specifications
Brand Name :
iqualitrol
Model Number :
QHL-602
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
5 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Inside :
dimensions 50×60×50cm
inner material :
mirror stainless steel #304
Temperature :
range +20℃~260℃
Control System :
Hot air circulation control mode
Power :
AC 220V, 50/60 HZ
Temp. :
uniformity ±1.5℃
Description

Electric Steam Hot Air Blast Drying Oven with white color


Brief Introduction:
This drying oven can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing.

Drying oven can be widely used in plastic, rubber, packaging, apparatus, machinery and metallurgy, chemical industry etc, and apply for heating of industrial and mining enterprises, scientific research units for chemical analysis physics laboratory determination and the heating treatment of general small steel parts.

Features:

●Materials: The shell is welded with high quality steel plate and the surface is treated by baking varnish. The inner case is made of mirror stainless steel #304.

●The oven adopts PID temperature controller with temperature control and digital display.It has the timing function, the temperature recovery is fast, the control temperature is accurate.

●The timer can be set in seconds, minutes, 10 minutes, hours and 10 hours, with a maximum time of 9999 hours,overtime will cut off heating, buzzer tips.

●The hot air circulation system is composed of low noise, high temperature resistant motor and special air duct design, ensuring the temperature uniformity and small fluctuation.

●Temperature range: RT(room temp)+20℃----260℃

●Heating rate: 1. RT~100℃ for about 10 minutes, 2℃/min


●Over temperature protection: overload power off system
●Voltage: 220V 50Hz three-phase four-wire + protection grounding

Type

Inside

dimension

(cm)

Outside

Dimension

(cm)

 Temperature range Accuracy(℃)

Evenness

(%)

 Grid Remarks
QHL-452

40×45

×40

66×82

×52

Type A: RT~260 °C

Type B: RT~300° C

Type C: RT~400° C

Type D: RT~500° C

 ±0.5 ±1.5 2 Single door
QHL-602

50×60

×50

75×116

×62

 ±0.5 ±1.5 2 Single door
QHL-802

60×100

×60

110×164

×78

 ±0.5 ±1.5 2 Single door
QHL-902

60×90

×50

83×158

×68

 ±1.0 ±1.5 2 Single door
QHL-1202

90×120

×50

109×180

×67

 ±1.0 ±1.5 2 Single door
QHL-1002

100×100

×100

120×160

×120

 ±1.0 ±1.5 4 Single door
QHL-1202L

120×90

×50

140×150

×67

 ±1.0 ±1.5 4 Dual door
QHL-1402H

140×120

×60

175×192

×78

 ±1.0 ±1.5 4 Dual door
QHL-1602

160×140

×80

200×215

×98

 ±1.0 ±1.5 4 Dual door
QHL-1802

180×140

×100

220×215

×118

 ±1.0 ±1.5 4 Dual door
QHL-2002

200×160

×120

240×235

×138

 ±1.0 ±1.5 4 Dual door


Technical Specifications:

Power AC220V, 50/60HZ
Control System Hot air circulation control mode
Ambient temp. & humid. Range +5℃ ~ +35℃ / <85%RH
Temp. range RT+20℃~300℃(The maximum operating temperature recommend ≤260℃)
Heating up time RT~100℃within 10 min
Temp. uniformity ±1.5℃
Temp. constancy ±0.5℃
Temp. accuracy ±0.1℃
Interior material SUS304# mirror stainless steel
Exterior material high quality Cold Rolled Steel with surface treatment
Insulation Glass wool
Safety devices Overheat protector, Magnetic switch, Porcelain fuse, Alarm system
Accessories Adjustable Shelf 2pcs, Overheating protective device

Note:
1, At 20℃ ambient temperature or 25℃ water temperature and non-loaded.
2, The above specifications are for reference only, the actual specifications for the main quotation.
3, Interior dimension is available for custom made.
