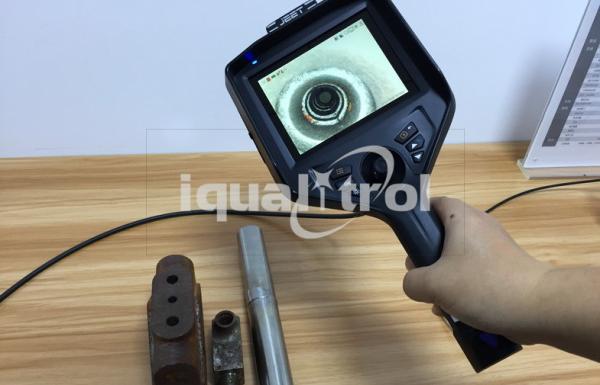

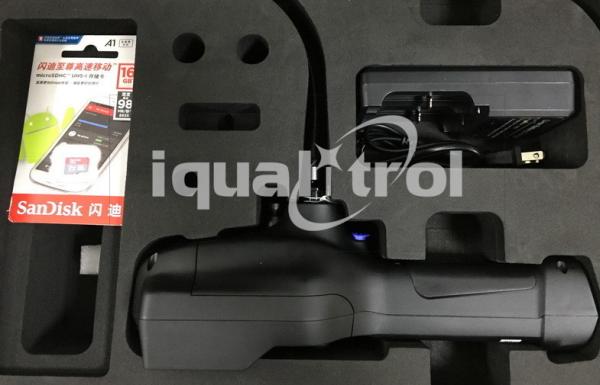

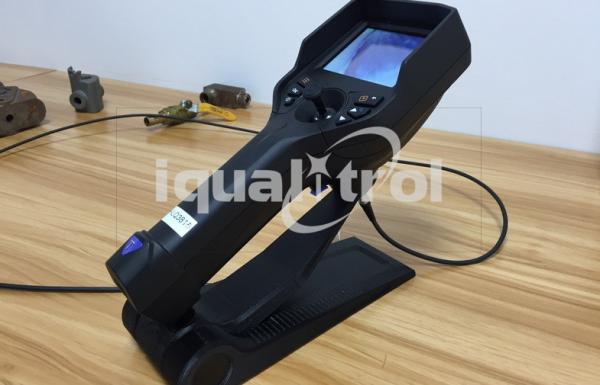

Visual Video Inspection Borescope With Front View Camera Insert Tube Diameter 3.9mm
Visual Video Inspection Borescope With Front View Camera Insert Tube Diameter 3.9mm
Visual Video Inspection Borescope With Front View Camera Insert Tube Diameter 3.9mm
Visual Video Inspection Borescope With Front View Camera Insert Tube Diameter 3.9mm
Visual Video Inspection Borescope With Front View Camera Insert Tube Diameter 3.9mm
Visual Video Inspection Borescope With Front View Camera Insert Tube Diameter 3.9mm
Visual Video Inspection Borescope With Front View Camera Insert Tube Diameter 3.9mm
Visual Video Inspection Borescope With Front View Camera Insert Tube Diameter 3.9mm
Specifications
Brand Name :
iqualitrol
Model Number :
i35-3915F
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
3 Working Days
Packaging Details :
Carton Box
Insert Tube :
Length 1.5M
Camera :
0.45 Mega Pixel
IR Function :
IR/IR thermal imaging(optional)
Application :
Gas turbines, Steam turbines, Diesel engines
Probe :
Diameter 3.9mm
Waterproof :
Camera/Object glass/Tubes:IP67
Description


Visual Inspection Industrial Videoscope with Front View Camera Insert Tube Diameter 3.9mm


Brief Introduction:
An industrial videoscope is a flexible inspection tool used to remotely inspect areas that are not otherwise visible. An industrial videoscope is typically used for visual or non-destructive testing.

An industrial videoscope consists of:
CCD or CMOS camera housed in the tip of the probe
Interchangeable tip optics
Articulating tip
Flexible working length
Illumination Source
Articulation controls
LCD monitor

Application:
iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

Industrial videoscopes are used to remotely inspect plant and equipment for condition, quality control check are made with videoscopes on precision parts and castings and law enforcement uses videoscopes for detection of hidden contraband and explosive ordinance disposal.

Common inspections include:
Gas turbines
Steam turbines
Boiler tubes
Heat exchanger tubes
Rotating equipment
Foreign object retrieval
Aircraft
Gearboxer

Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.

Operation Environment:

Host System Working Temperature -20°C~50°C, when 0°C below, the display needs preheating.
Camera Working Temperature -20°C~80°C, when 0°C below, please reduce oriented operation.
Store Temperature -23°C~63°C
Relative Humidity Maximum: 92%, non-condensing


Technical Specifications:

Camera Diameter(mm) Φ3.9mm
Camera Material Titanium alloy
Camera Pixel 0.45 Mega Pixel
Depth of Field 20mm～150mm/ 10-100mm
Angle of Field 120°
Illumination 30,000lx at a maximum
Bright/Chroma/Contrast Ratio Adjustment Manual, bright: six levels, chroma and contrast ratio: manual adjusting
Articulation 360° all-way articulation
Bending Angle ≥180°
Effective Working Length 2m
Insert Tube tungsten-braided
Protecting Device of
Durability		 Buffer protection device between the host and wear-resistant tube
Display Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display
Display Resolution 640*480
Image Resolution 640*480/1280*720/1920*1080
Video Resolution 640*480/1280*720/1920*1080
Image/Video Format JPEG/MOV
WIFI Function WIFI(optional)
IR Function IR/IR thermal imaging(optional)
Memory Standard TF card:8G, Maximum: 32G
Language Chinese, English, Russian… 8 languages
Data I/O port Micro-USB port,HDMI port
Waterproof Camera/Object glass/Tubes:IP67
Working Time ≥8 hours
Weight ≤0.55kg(with batteries)
Power Supply Rechargeable lithium battery(or built-in battery)
Battery Capacity 3.7V 3200mAh
Power Consumption 2W
Charging Parameters DC5V, Maximum current:1A
