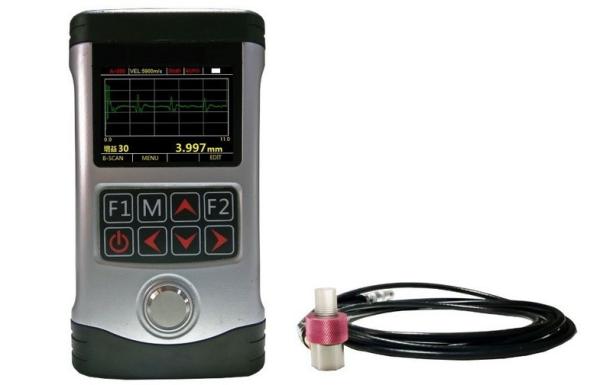

Color Display Single Crystal Ultrasonic Thickness Gauge IQUALITROL iSonic-3000HMC
Color Display Single Crystal Ultrasonic Thickness Gauge IQUALITROL iSonic-3000HMC
Specifications
Brand Name :
iqualitrol
Model Number :
iSonic-3000HMC
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Carton Box
Model :
iSonic-3000HMC
Probe :
Single crystal delay single head (15MHz)
Maximum value capture :
Display the current thickness value, minimum thickness value and maximum thickness value at the same time
Difference Value mode :
Display the difference between the actual thickness and the preset thickness and the thinning percentage
Description

Color Display Single Crystal Ultrasonic Thickness Gauge IQUALITROL iSonic-3000HMC

Technical Specifications:

Measurement range

Pulse-echo method: 1.2mm-26mm

Echo-echo method: 0.2mm-13mm

Multiple wave test method: 0.2mm-9mm

Automatic mode: 0.2mm-26mm
Measurement resolution 0.001 or 0.01 or 0.1
Material sound velocity range 1000-9999m/s
Working Environment Temperature: -10C - 60C; relative humidity less than 90%
Dimension & weight 146mm*81mm*30mm, 300g (including battery)
Measuring units mm or inch
Power supply two AA batteries
Display 2.4 TFT color display (320x240)

Main Functions:

1. Display mode:

A-SCAN: Display the echo waveform of the workpiece;

B-SCAN: Time-based B scan, display the cross-section of the workpiece;

Normal mode: Large digital view of the thickness value;

Difference Value mode: Display the difference between the actual thickness and the preset thickness and the thinning percentage;

Maximum value capture: Display the current thickness value, minimum thickness value and maximum thickness value at the same time;

2. Gain: Real-time adjustable;

3. Instrument shutdown: Automatic shutdown after 5, 10, 20 minutes of no operation, or manual shutdown;

4. Probe used: Single crystal delay single head (15MHz);

5. Alarm setting: When the measured value is greater than the upper and lower limits, change the displayed thickness value color and waveform color to indicate an alarm.
