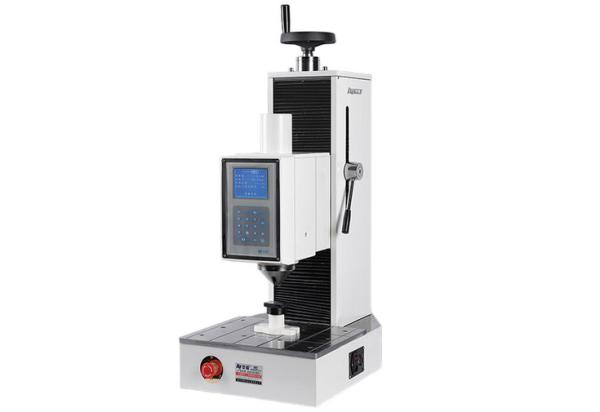

Automatic Digital Full Rockwell Hardness Tester 300HRSS-150 with Closed Loop Force Control
Automatic Digital Full Rockwell Hardness Tester 300HRSS-150 with Closed Loop Force Control
Specifications
Brand Name :
iqualitrol
Model Number :
300HRSS-150
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
Model :
300HRSS-150
Test Space :
Height 300mm * Depth 150mm
Display :
LCD Display, Menu Operation, Complete Functions
Measurement :
High-precision Grating Displacement Measurement System
Description

Automatic Digital Full Rockwell Hardness Tester 300HRSS-150
with Closed Loop Force Control

Main Features:

● Closed-loop control of test force;

● Automatic tracking measurement, no measurement error caused by frame deformation and workpiece deformation;

● The indenter can automatically move up and down and clamp the workpiece automatically, no need load initial test force;

● High-precision grating displacement measurement system;

● Large workbench, capable of measuring special-shaped and heavy-shaped parts;

● LCD display, menu operation, complete functions (data processing, hardness conversion, etc.);

● RS232 data interface;

● Optional computer and data process software;

● Accuracy meets GB/T230.2, ISO 6508-2 and American ASTM E18.

Technical Specifications:

Model 300HRSS-150
Total Test Force

15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),

60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Rockwell Ranges 20-95HRA,10-100HRBW,10-70HRC,70-94HR15N,42-86HR30N,20-77HR45N,67-93HR15TW,29-82HR30TW,10-72HR45TW
Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Test Scale

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Data Output RS232 Interface
Resolution 0.1HR
Dwell Time 0~99s
Vertical Space 300mm, Indenter movement range 50mm
Throat 150mm
Power Supply AC220V/50Hz/1Ph
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 600x450x1000mm, Packing Dimension: 720×560×1370mm
Weight Net Weight: 190kg, Gross Weight: 220kg
